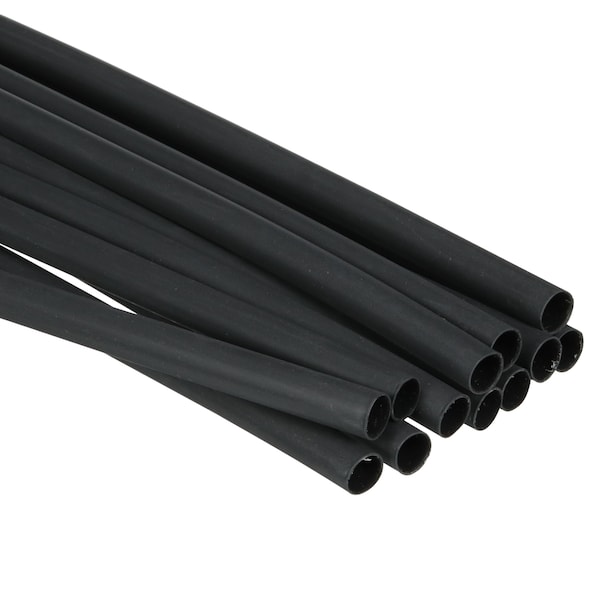

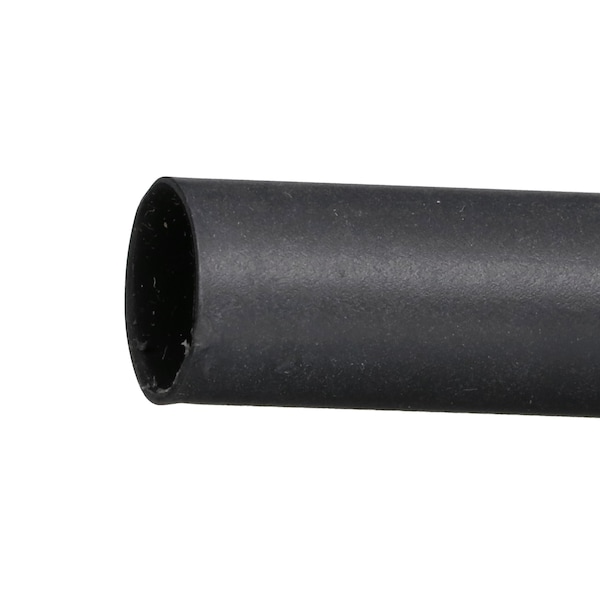

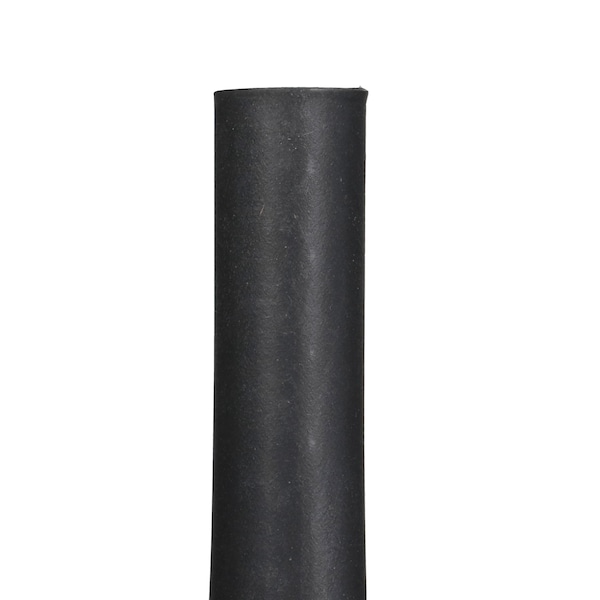

Adhesive Lined Heat Shrink Tube, Thin Wall, 3:1 I.D. Shrink Ratio, 0.38 in I.D. Before Shrinking
| Item | Adhesive Lined Heat Shrink Tube |
|---|---|
| Shrink Ratio | 3:1 |
| Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 3/8 in |
| Shrink Tubing I.D. After Shrinking | 0.12 in |
| Material | Polyolefin |
| Color | Black |
| Length | 4 ft |
| Use with Wire Size | 12 to 8 AWG |
| Temp. Range | -67° to 230°F |
| Min. Shrink Temp. | 250°F |
| Max. Voltage | 600 V |
| Standards | CSA File LR38227, UL E157227 |
| Shrink Tubing Material Type | Flexible |
| Shrink Tubing Wall Thickness After Shrinking | 0.055 in |
| Flame Retardant | Yes |
| Features | Dual-Wall Construction, Moisture Seal Protection, Skintight Fit, Strain Relief Protection, Thermoplastic Adhesive Internal Layer |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | Yes |
| Shrink Tubing Properties | Abrasion Resistant, Acid and Alkali Resistant |
| Dielectric Strength | 700 V |
| Wall Thickness After Shrinking | 0.06 in |
| Min. Temp. Rating | -67 deg F |
| Max. Temp. Rating | 230 deg F |
| Package Style | Individual Pieces |
| I.D. After Shrinking | 0.12 in |
| I.D. Before Shrinking | 0.38 in |
| Shrink Tube Material Type | Flexible |
| Package Quantity | 125 |
