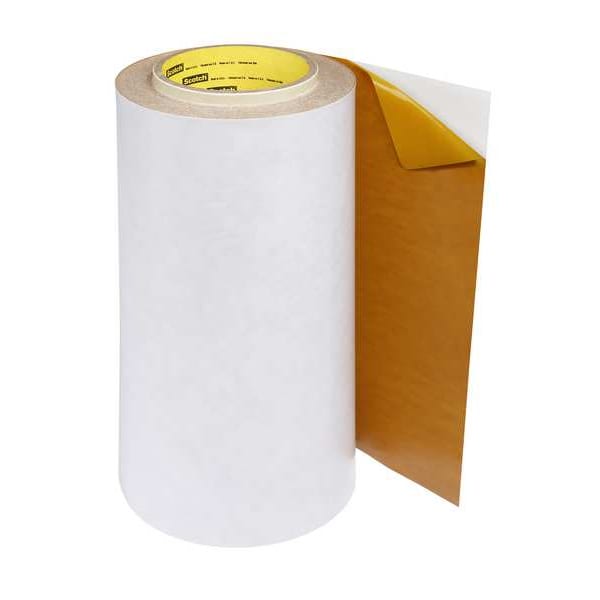

Película de unión, termoplástica, 12 pulgadas por 60 yardas, paquete de 4.
| Item | Film Tape |
|---|---|
| Tape Color | Brown |
| Imperial Tape Length | 60 yd |
| Imperial Tape Width | 12 in |
| Metric Tape Length | 55 m |
| Tape Thickness | 3 mil |
| Tape Backing Material | Nitrile Phenolic Film |
| Tape Shape | Strip |
| Tape Tensile Strength | 400 lb/in |
| Series | 583 |
| Curing Time | 5 min. |
| Temp. Range | 225 to 300 deg F |
| Substrates | Aluminum, FR-4, Phenolic Board, Steel, ABS, Acrylic, Polyproylene, EPDM, and Others |
| Shear Strength | 10 psi |
| Tape Elongation | 8 % |
| Characteristics | Flexible, heat or solvent activated dry film adhesive composed of synthetic elastomer, thermoplastic, and thermosetting resins. |
| Application | Can be lightly crosslinked for additional heat and solvent resistance as well as somewhat higher shear strengths. |
| Specific Gravity | 1.06 |
| Standards | ASTM D4502-85, ASTM D638 |
| Tape Length | 60 yd |
| Tape Width | 12 in |
| Size | 12" x 60 yd. |
| Product Form | Continuous Roll |
| Surface Compatibility | ABS, Acrylic, Composites, Glass, Metal, Polystyrene (PS) |
| Sub-Brand | Scotch-Weld |
| Liner Included | Yes |
| Tape Sub-Type | Film Tape |
| Tape Resistance Properties | Heat-Resistant, Solvent-Resistant |
| Temperature Range | Up to 300 Degrees F |
| Liner Material | Paper |
| Brand and Series | 3M Scotch-Weld 583 |
| Common Industry | Assembly & Manufacturing, Automotive, Electronics |
| Tape Brand | 3M(TM) |
| Adhesion to Steel | Not Rated |
| Tape Type | Film Tape |
| Environment | Indoor Only |
| Tape Adhesive Format | Double-Sided |
| Package Quantity | 4 |
