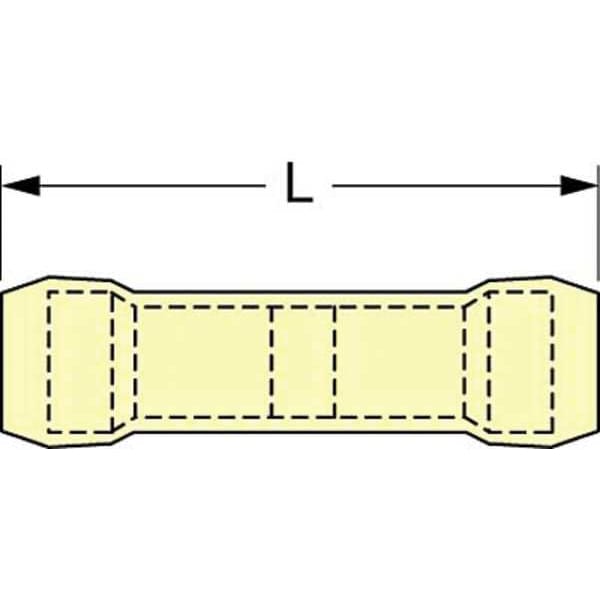

Butt Splice Connector, 12-10AWG, Yel, PK500
| Item | Splice Connector |
|---|---|
| Wire Range | 12 to 10 AWG |
| Insulation Type | Nylon |
| Seam | Brazed |
| Connection Type | Crimp |
| Length | 1.15 in |
| Insulation Color | Yellow |
| Color | Yellow |
| Max. Voltage | 600 V |
| Overall Length | 1.15 in |
| Max. Temp. | 221 deg F |
| Connector Type | Butt Splice |
| Standards | CSA Certified, UL Listed |
| Connection Material | Brass |
| Barrel Inside Dia. | 0.135 in |
| Maximum Voltage | 600 V |
| Minimum Operating Temperature | -40 deg F |
| Insulation Material | Nylon |
| Termination Style | Crimp |
| Seam Style | Seamless |
| Contact Material | Brass |
| Compatible Installation Tool Model Number | TH-440, TH-450, TR-482, TR-490 |
| Barrel Inside Diameter | 0.135 in |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Maximum Operating Temperature | 221 deg F |
| Body Finish | Tin Plated |
| For Maximum Wire Insulation Diameter | 1/4 in |
| RoHS Compliant | Yes |
| Body Material | Copper |
| Terminal Type | Butt |
| Maximum Insulation Outer Diameter | 1/4 in |
| Barrel Length | 1/4 in |
| Conductor Sizes | 12 - 10 AWG |
| Terminal Style | Standard |
| Thickness | 0.04 in |
| Barrel Style | Butted |
| Agency Approvals | UL, CSA |
| Maximum Operating Temperature (Celsius) | 105°C |
| Package Quantity | 500 |
