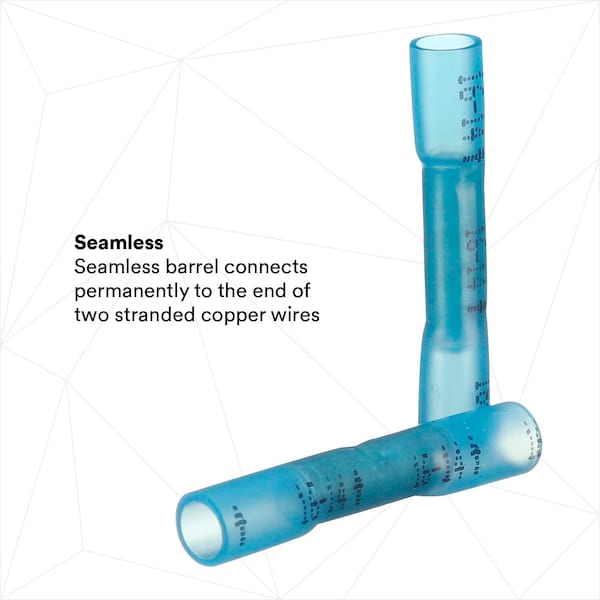

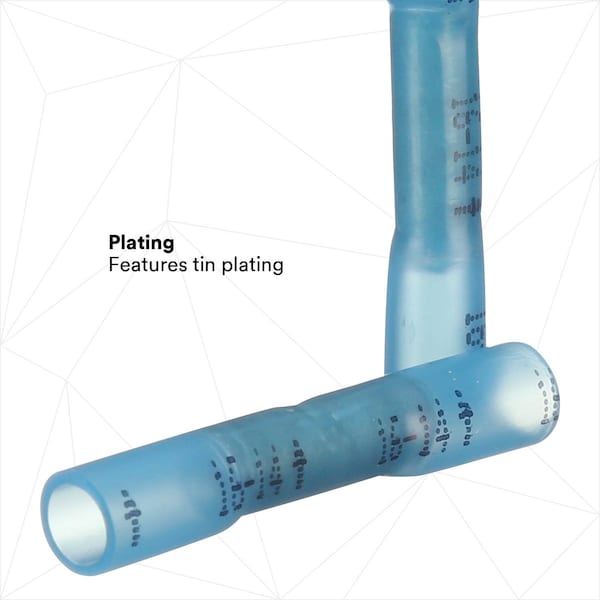

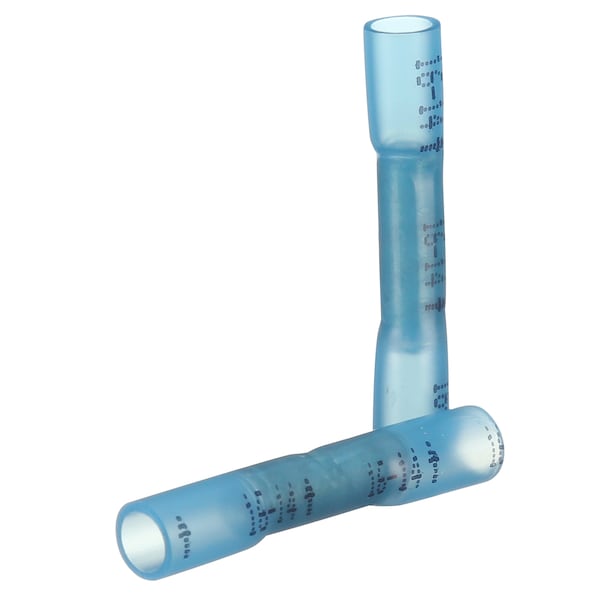

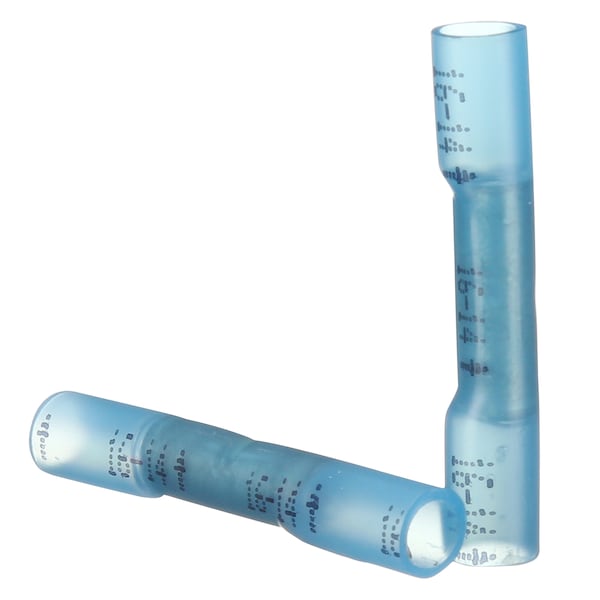

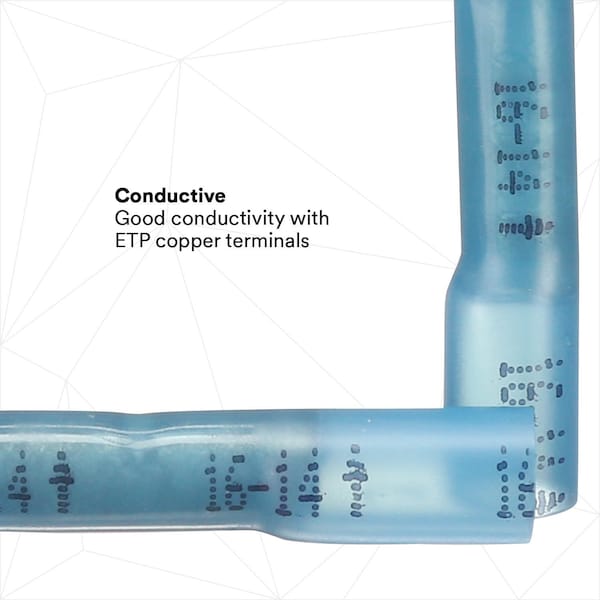

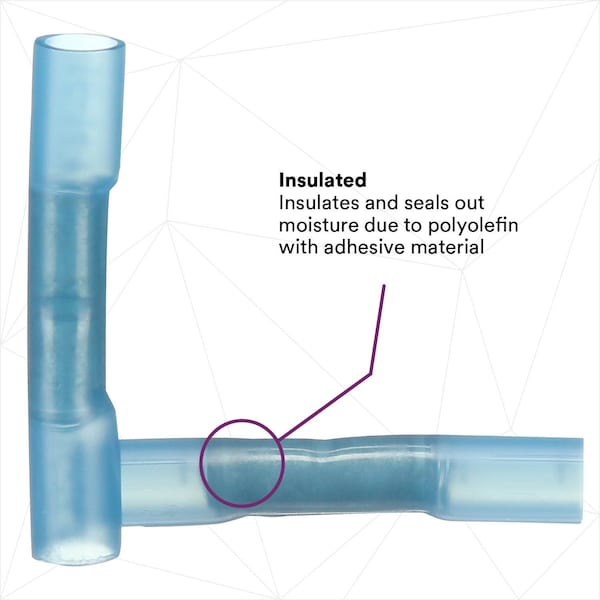

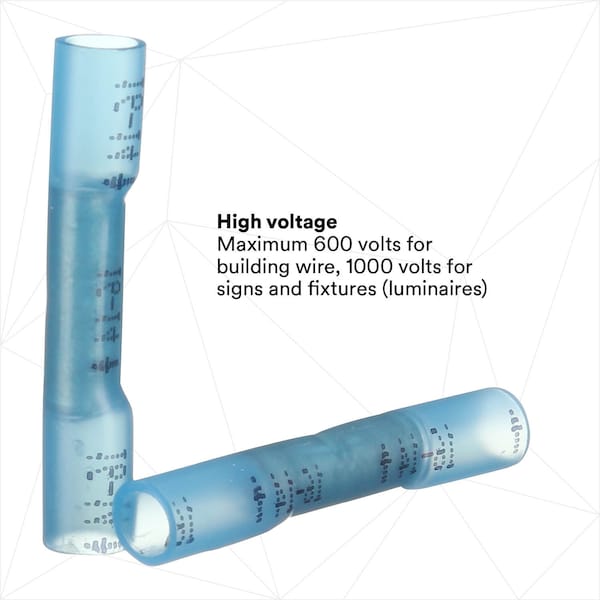

Conector de empalme de calibre 16-14AWG en color azul, viene en paquete de 25 unidades. Ideal para conexiones eléctricas seguras y confiables.
| Item | Splice Connector |
|---|---|
| Color | Blue |
| Connection Type | Crimp |
| Overall Length | 1.3 in |
| Wire Range | 16 to 14 AWG |
| Insulation Color | Blue |
| Standards | CSA, UL |
| Connection Material | Copper |
| Connector Type | Butt Splice |
| Barrel Inside Dia. | 0.095 in |
| Seam | Butted |
| Insulation Type | Heat Shrink |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Terminal Type | Butt Connectors |
| Seam Style | Butted |
| Contact Material | Copper |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Barrel Inside Diameter | 0.095 in |
| Minimum Conductor Size | 16 AWG |
| Disconnect Type | Female |
| Maximum Operating Temperature (Celsius) | 105°C |
| Body Material | Copper Alloy |
| Maximum Conductor Size | 14 AWG |
| UL 94 Flammability Rating | Not Applicable |
| Special Features | Built-In Wire Stop for Correct Positioning |
| Contact Finish | Tin |
| Insulation Material | Polyolefin |
| RoHS Compliant | Yes |
| Termination Style | Crimp |
| Package Quantity | 25 |
