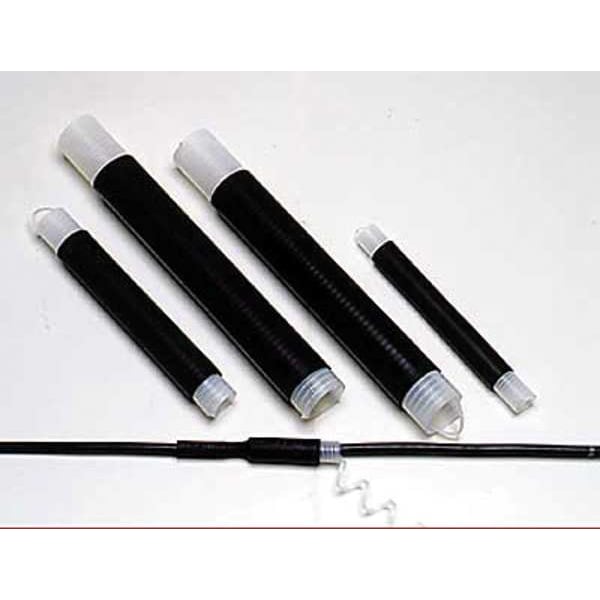

Cold Shrink Tube, Medium Wall, Not Rated I.D. Shrink Ratio, 1.94 in I.D. Before Shrinking, Black
| Item | Cold Shrink Tube |
|---|---|
| Shrink Ratio | Not Rated |
| Wall Type | Medium Wall |
| Shrink Tubing I.D. Before Shrinking | 1.94 in |
| Shrink Tubing I.D. After Shrinking | 0.949 in |
| Material | EPDM Rubber |
| Color | Black |
| Length | 18 in |
| Use with Wire Size | 500 to 800 MCM |
| Temp. Range | -40° to 194°F |
| Min. Shrink Temp. | None |
| Max. Voltage | 1,000 V |
| Standards | ANSI C119.1 |
| Features | Requires No Tools or Heat, Moisture-Tight Seal, Suitable for Direct Buried Applications |
| Shrink Tubing Material Type | Flexible |
| Flame Retardant | No |
| Adhesive Lined | No |
| Tubing Wall Type | Medium Wall |
| Shrink Tubing Properties | UV Light Resistant |
| Package Style | Individual Pieces |
| Wall Thickness After Shrinking | Not Applicable |
| Dielectric Strength | 1,000 V |
| Min. Temp. Rating | -40 deg F |
| Max. Temp. Rating | 194 deg F |
| Voltage | 1,000 V |
| Number of Conductors | 1 |
| Maximum Connector Length | 14 in |
| Conductor Material | Aluminum, Copper |
| Cable Type | Power Cable |
| Application | Insulation, mechanical protection, repair |
| Model | Cold-shrink |
| I.D. After Shrinking | 0.95 in |
| I.D. Before Shrinking | 1.94 in |
| Shrink Tube Material Type | Flexible |
| Package Quantity | 10 |
