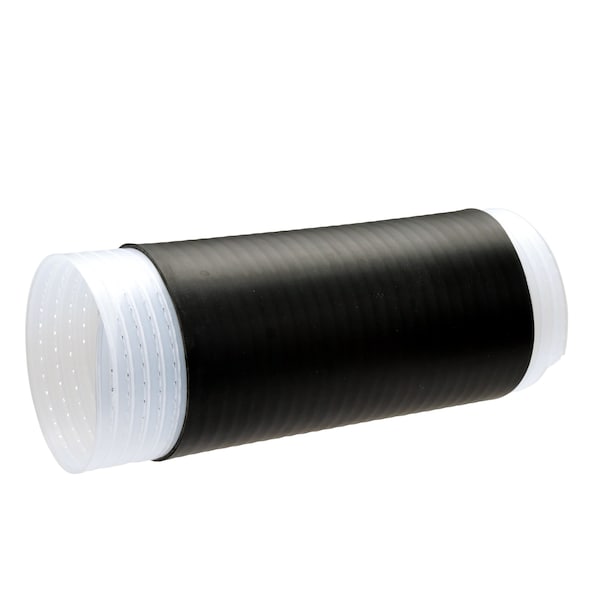

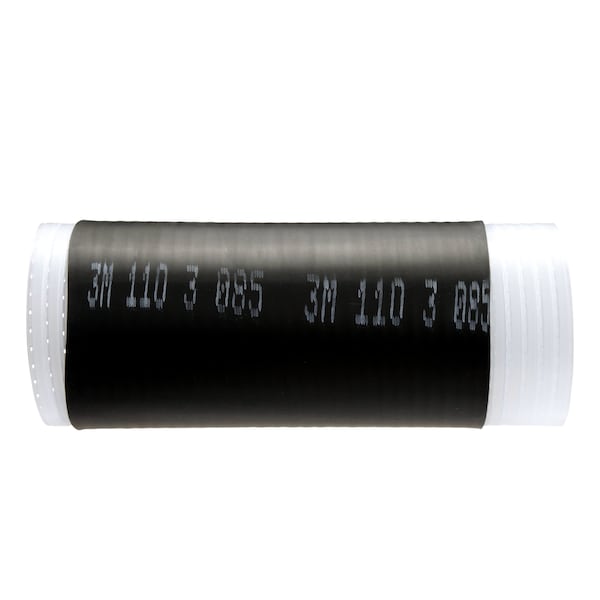

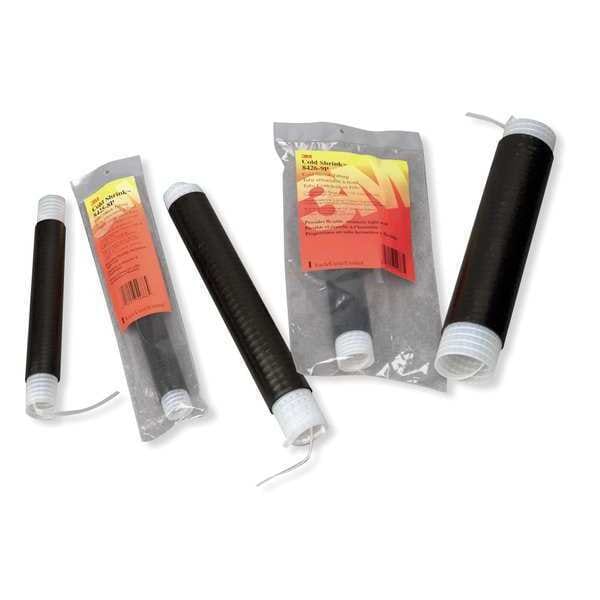

Cold Shrink Tube, Medium Wall, Not Rated I.D. Shrink Ratio, 3.69 in I.D. Before Shrinking, Black
| Item | Cold Shrink Tube |
|---|---|
| Shrink Ratio | Not Rated |
| Wall Type | Medium Wall |
| Shrink Tubing I.D. Before Shrinking | 3.69 in |
| Shrink Tubing I.D. After Shrinking | 1.677 in |
| Material | EPDM Rubber |
| Color | Black |
| Length | 9 in |
| Use with Wire Size | 1250 to 2000 MCM |
| Temp. Range | -66° to 500°F |
| Min. Shrink Temp. | None |
| Features | Requires No Tools or Heat, Moisture-Tight Seal, Suitable for Direct Buried Applications |
| Standards | ANSI C119.1 |
| Flame Retardant | No |
| Shrink Tubing Material Type | Flexible |
| Max. Voltage | 1,000 V |
| Tubing Wall Type | Medium Wall |
| Adhesive Lined | No |
| Shrink Tubing Properties | UV Light Resistant |
| Dielectric Strength | 1,000 V |
| Package Style | Individual Pieces |
| Min. Temp. Rating | -66 deg F |
| Wall Thickness After Shrinking | 0.06 in |
| Max. Temp. Rating | 500 deg F |
| Conductor Size Range | 1250-2000 kcmil |
| Maximum Connector Length | 5 in |
| Number of Conductors | 1 |
| Maximum Connector Length (Metric) | 127.0 mm |
| Voltage | 1,000 V |
| Application | Insulation, mechanical protection, repair |
| Cable Type | Cable with plastic and rubber insulation |
| Overall Diameter (Metric) | 94 mm |
| Conductor Material | Copper - Aluminum |
| I.D. Before Shrinking | 3.69 in |
| I.D. After Shrinking | 1.68 in |
| Shrink Tube Material Type | Flexible |
| Package Quantity | 1 |
