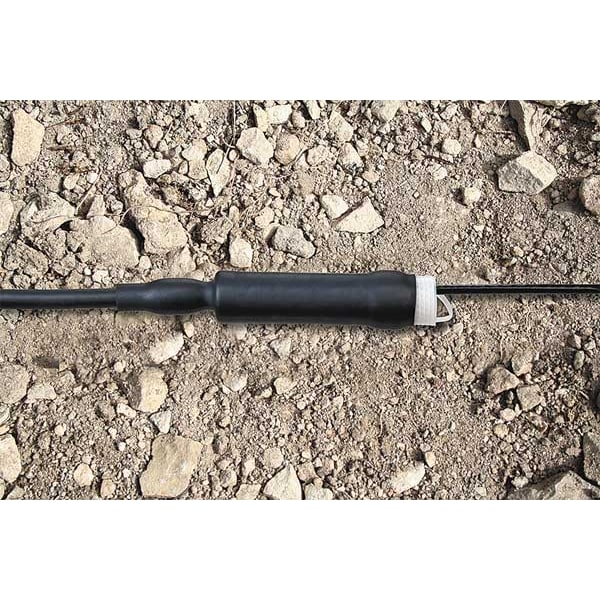

Connector Insulatrs, 1.6in ID, Blk, 5-1/4in
| Item | Cold Shrink Quick Splice |
|---|---|
| Shrink Ratio | Not Rated |
| Shrink Tubing Wall Type | Medium Wall |
| Shrink Tubing I.D. Before Shrinking | 1.6 in |
| Material | EPDM Rubber |
| Color | Black |
| Length | 5-1/4 in |
| Temp. Range | -40 to 266 deg F |
| I.D. After Shrinking | 0.4 in |
| Features | 3-Core System, Water Resistant |
| Standards | ANSI Certified, RoHS 2011/65/EU |
| Shrink Tubing Usable Temp. Range | -40 to 266 deg F |
| Use Shrink Tubing With Wire Size | 2 AWG to 750 kcmil |
| Flame Retardant | No |
| Shrink Tubing Type | Cold Shrink Tubing |
| Shrink Tubing Length | 5-1/4 in |
| Max. Voltage | 1,000 V |
| Shrink Tubing Adhesive Lined | No |
| Shrink Tubing Material | EPDM Rubber |
| I.D. Before Shrinking | 1.6 in |
| Tubing Wall Type | Medium Wall |
| Adhesive Lined | No |
| Use With Wire Size | 2 AWG to 750 MCM |
| Wall Thickness After Shrinking | Not Applicable |
| Shrink Tubing Properties | UV Light Resistant |
| Min. Temp. Rating | -40 deg F |
| Dielectric Strength | 1,000 V |
| Max. Temp. Rating | 266 deg F |
| Package Style | Individual Pieces |
| Length (Straight Wireway) | 5-1/4 in |
| Package Quantity | 1 |
