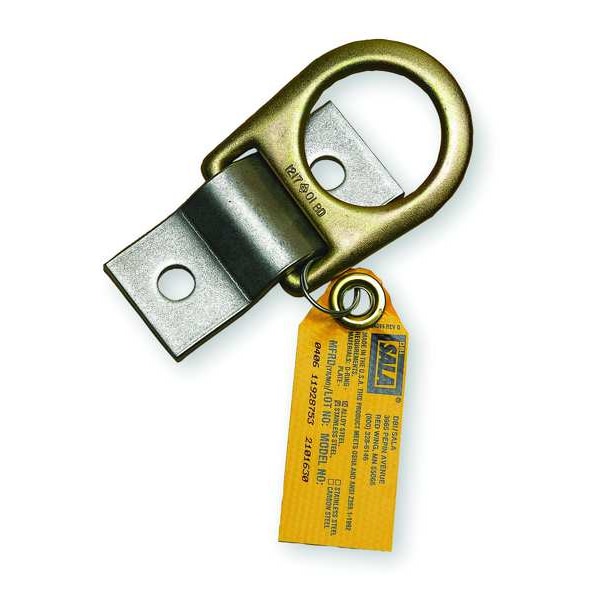

D-Ring with Anchorage Plate, 310 lb Capacity, Permanent Installation, Stainless Steel
| Item | D-Ring Anchor |
|---|---|
| Standards | OSHA, ANSI Z359 |
| Length | 4-1/2 in |
| Weight Capacity | 310 lb |
| Tensile Strength | 5,000 lb |
| Anchor Material | Stainless Steel |
| Attachment Point | Swivel D-Ring |
| Workers per System | 1 |
| Width | 3-3/8 in |
| Material | Stainless Steel |
| Hole Depth | 4-1/4 in |
| Installation | Permanent |
| Hole Dia. | 1/2 in |
| Depth | 4-1/2 in |
| D-Ring Material | Steel |
| Anchor Installation | Permanent |
| Brand and Series | 3M DBI-SALA |
| Includes Mounting Hardware | No |
| Visual Load Indicator | No |
| Anchor Performance | General Purpose |
| Mounting Orientation | Horizontal, Vertical |
| Adjustment Style | Dials |
| Sliding Mechanism | Wheels |
| Series | DBI-SALA |
| Beam Clamp Style | Sliding |
| Products By Industry | Electrical |
| Ring Diameter | 3-1/4 in |
| Number of Mounting Holes | 2 |
| Anchorage End Connection | Rectangle Plate |
| For Maximum Rail Head Width | Not Applicable |
| For Maximum Flange Thickness | Not Applicable |
| For Maximum Rail Weight | Not Applicable |
| Mounting Hole Diameter | 1/2 in |
| OSHA Standards Met | OSHA 1910.140, OSHA 1926.502 |
| For Minimum Rail Head Width | Not Applicable |
| For Minimum Rail Weight | Not Applicable |
| ANSI Standards Met | ANSI Z359.1 |
| For Maximum Flange Width | Not Applicable |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
