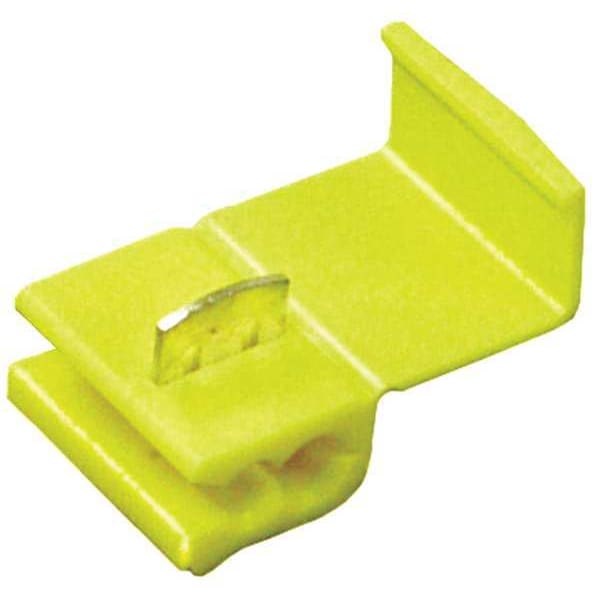

Conector de desplazamiento, 12-10 AWG, paquete de 1000
| Color | Yellow |
|---|---|
| Max. Voltage | 600 V |
| Application | Dry Environment |
| Number of Ports | 2 |
| Max. Temp. | 221 deg F |
| Fill Material | No Fill |
| Standards | UL Listed |
| Item | Insulation Displacement Connector |
| Max. Insulation Dia. | 0.19 in |
| Connector Type | Single U-Element |
| Flame Retardant | No |
| Insulation Material | Polypropylene |
| Crimping Tool | 2JLF8 |
| Wire Range (Tap) | 12 to 10 AWG |
| Wire Type | Electrical |
| Wire Range (Run) | 12 to 10 AWG |
| Minimum Run Wire Size | 12 AWG |
| Maximum Operating Temperature | 221 deg F |
| Maximum Run Wire Size | 10 AWG |
| Maximum Voltage | 600 V |
| Minimum Tap Wire Size | 12 AWG |
| Maximum Tap Wire Size | 10 AWG |
| Compatible Installation Tool Model Number | 2JLF8 |
| Minimum Operating Temperature | 221 deg F |
| Maximum Insulation Diameter | 0.19 in |
| Package Quantity | 1000 |
