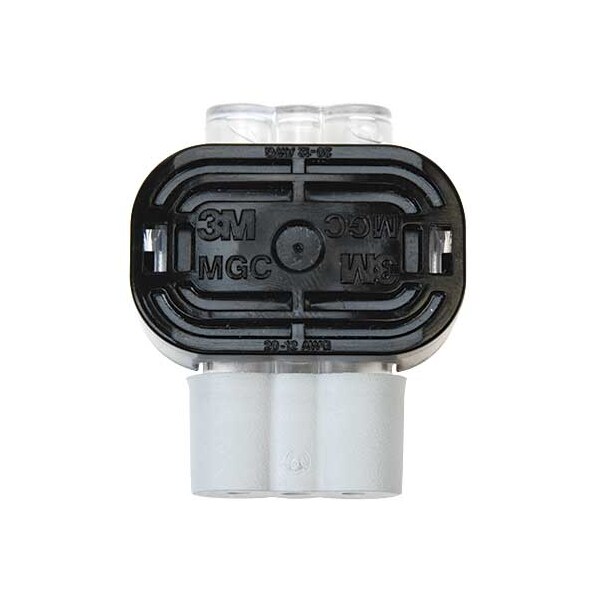

El conector de desplazamiento 3M, de calibre 20-18 AWG, viene en un práctico paquete de 25 unidades. Conecta de manera segura y confiable tus cables con este producto de alta calidad.
| Color | Black |
|---|---|
| Max. Voltage | 600 V |
| Application | Moisture Resistant |
| Connector Type | Run Tap |
| Crimping Tool | Pliers |
| Insulation Material | Polycarbonate |
| Number of Ports | 3 |
| Features | Up Protection; Good Conductivity and Tin Plating for Corrosion Resistance; C UL Listed and RoHS 2011/65/EU Compliant |
| Max. Insulation Dia. | 0.15 in |
| Flame Retardant | Yes |
| Max. Temp. | 221 deg F |
| Wire Type | Electrical |
| Wire Range (Tap) | 20 to 18 AWG |
| Capacity | 16 to 14 AWG Solid/Stranded, 12 AWG Stranded (Outer Ports) and 18 AWG Solid/Stranded, 20 AWG Stranded (Inner Port) |
| Fill Material | Gel |
| Wire Range (Run) | 20 to 18 AWG |
| Material | Polycarbonate |
| Item | Moisture Guard Connector |
| Maximum Voltage | 600 V |
| Compatible with Product Type | Irrigation, Lighting |
| Minimum Run Wire Size | 20 AWG |
| Resistance Properties | UV Resistant, Water Resistant, Weather Resistant |
| RoHS Compliant | Yes |
| Maximum Operating Temperature | 221 deg F |
| Maximum Insulation Diameter | 0.15 in |
| Contact Material | Brass |
| UL 94 Flammability Rating | V-2 |
| Minimum Tap Wire Size | 20 AWG |
| Maximum Tap Wire Size | 18 AWG |
| Maximum Run Wire Size | 18 AWG |
| Contact Finish | Tin |
| Package Quantity | 25 |
