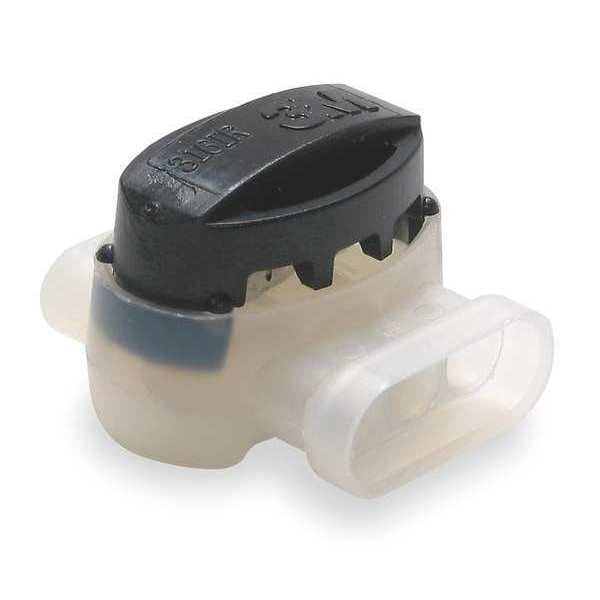

Conector de desplazamiento, 22-16 AWG, paquete con 30 unidades.
| Color | Black, White |
|---|---|
| Max. Voltage | 600 V |
| Application | Moisture Resistant |
| Crimping Tool | 2JLF8 |
| Max. Insulation Dia. | 0.155 in |
| Max. Temp. | 221 deg F |
| Capacity | 22 to 16 AWG |
| Flame Retardant | Yes |
| Features | Good Conductivity and Corrosion Resistance; UL Listed and RoHS 2011/65/EU Compliant; Nylon Insulated |
| Wire Type | Electrical |
| Item | Insulation Displacement Connector |
| Connector Type | Pigtail |
| Blade Material | Brass |
| Standards | UL Listed |
| Insulation Material | Nylon |
| Fill Material | Gel |
| Wire Range (Tap) | 22 to 16 AWG |
| Wire Range (Run) | 22 to 16 AWG |
| Material | Nylon |
| Number of Ports | 3 |
| Insulated / Uninsulated | Insulated |
| Minimum Tap Wire Size | 22 AWG |
| Minimum Run Wire Size | 22 AWG |
| Maximum Tap Wire Size | 16 AWG |
| Maximum Voltage | 600 V |
| Contact Material | Brass |
| Maximum Run Wire Insulation Diameter | 0.155 in |
| Contact Finish | Tin |
| Maximum Run Wire Size | 16 AWG |
| Maximum Tap Wire Insulation Diameter | 0.155 in |
| Special Features | Self Stripping |
| Maximum Insulation Diameter | 0.155 in |
| Maximum Operating Temperature | 221 deg F |
| Resistance Properties | Moisture Resistant, Water Resistance |
| RoHS Compliant | Yes |
| Compatible Installation Tool Model Number | E-9BM |
| Package Quantity | 30 |
