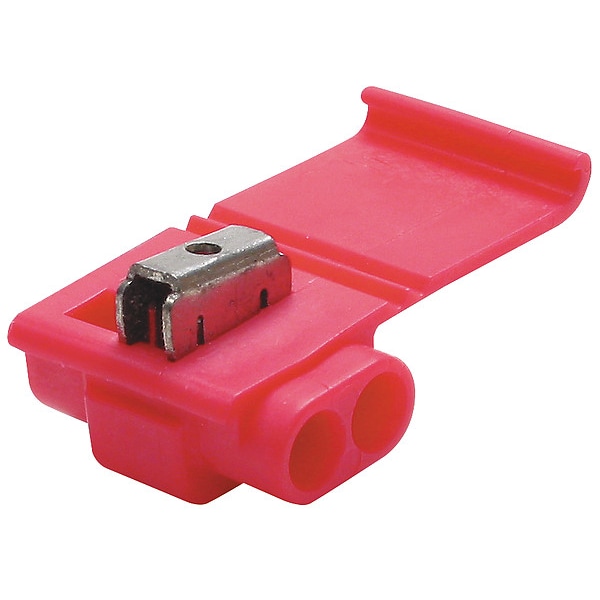

Displacement Connector, 22-16AWG, PK100
| Color | Red |
|---|---|
| Max. Voltage | 600 V |
| Application | Dry Environment |
| Connector Type | Double U-Element |
| Max. Insulation Dia. | 0.12 in |
| Wire Range (Tap) | 22 to 16 AWG |
| Item | Insulation Displacement Connector |
| Max. Temp. | 221 deg F |
| Insulation Material | Polypropylene |
| Wire Type | Electrical |
| Fill Material | No Fill |
| Flame Retardant | Yes |
| Number of Ports | 2 |
| Crimping Tool | 2JLF8 |
| Standards | CSA Certified, UL Listed |
| Wire Range (Run) | 22 to 16 AWG |
| Maximum Voltage | 1,000 V |
| Maximum Operating Temperature | 221 deg F |
| Maximum Tap Wire Insulation Diameter | 0.12 in |
| Maximum Insulation Diameter | 0.12 in |
| Maximum Tap Wire Size | 16 AWG |
| Maximum Run Wire Size | 16 AWG |
| Contact Material | Brass |
| Compatible with Product Type | Building Wire, Fixtures, Luminaires, Signs |
| Maximum Run Wire Insulation Diameter | 0.12 in |
| Minimum Tap Wire Size | 22 AWG |
| Contact Finish | Tin |
| RoHS Compliant | Yes |
| Compatible Installation Tool Model Number | E-9BM |
| UL 94 Flammability Rating | V-2 |
| Special Features | Self Stripping |
| Minimum Run Wire Size | 22 AWG |
| Package Quantity | 100 |
