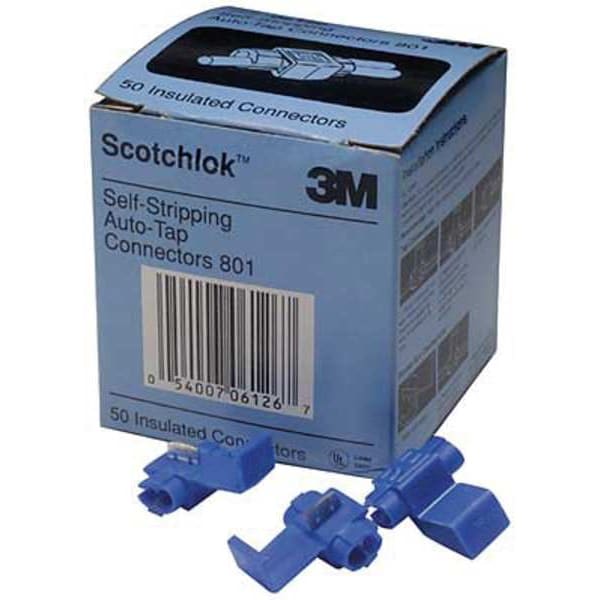

Conector de desplazamiento, calibre 18-14 AWG, paquete de 5000 unidades.
| Color | Blue |
|---|---|
| Max. Voltage | 600 V |
| Application | Dry Environment |
| Standards | CSA Certified, UL Listed |
| Wire Type | Electrical |
| Max. Insulation Dia. | 0.145 in |
| Item | Insulation Displacement Connector |
| Max. Temp. | 194 deg F |
| Flame Retardant | Yes |
| Connector Type | Single U-Element |
| Wire Range (Tap) | 18 to 14 AWG |
| Insulation Material | Polypropylene |
| Wire Range (Run) | 18 to 14 AWG |
| Number of Ports | 2 |
| Crimping Tool | 2JLF8 |
| Fill Material | No Fill |
| Minimum Run Wire Size | 18 AWG |
| Maximum Run Wire Size | 14 AWG |
| Minimum Tap Wire Size | 18 AWG |
| Maximum Tap Wire Size | 14 AWG |
| Maximum Operating Temperature | 194 deg F |
| Compatible Installation Tool Model Number | E-9BM |
| Maximum Insulation Diameter | 0.145 in |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | V-2 |
| Package Quantity | 5000 |
