Conexión eléctrica marrón - Junta y Empalma 18-14 AWG (Empalme), 12-10 AWG (Conexión) Paquete de 100 unidades.
| Color | Brown |
|---|---|

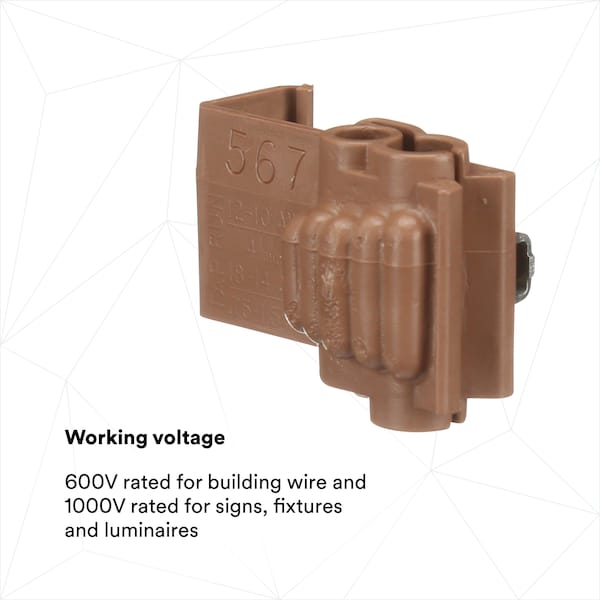

| Max. Voltage | 600 V |
| Application | Dry Environment |
| Connector Type | Run Tap |
| Wire Type | Electrical |

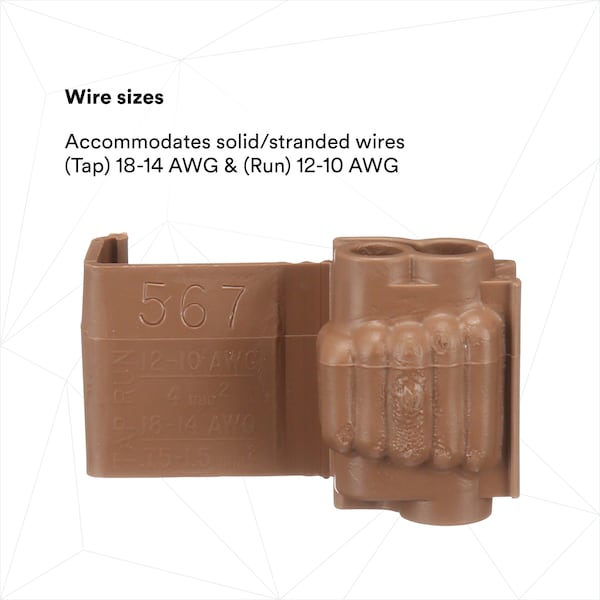

| Wire Range (Run) | 12 to 10 AWG |

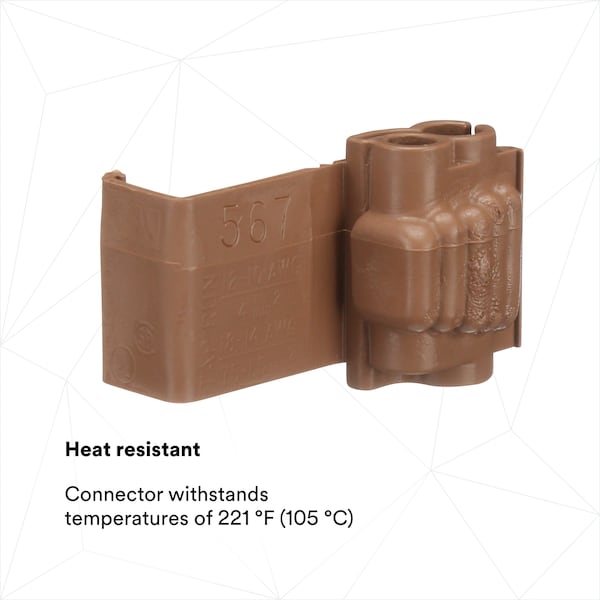

| Max. Temp. | 221 deg F |
| Wire Range (Tap) | 18 to 14 AWG |
| Item | Insulation Displacement Connector |
| Flame Retardant | Yes |
| Insulation Material | Polypropylene |

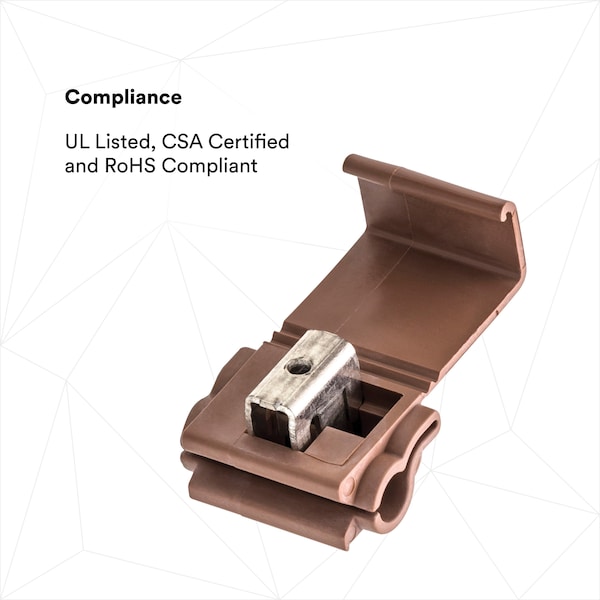

| Standards | CE Certified, CSA Certified, UL Listed |
| Crimping Tool | 2JLF8 |
| Max. Insulation Dia. | 0.110 in Tap and 0.145 in Run |
| Number of Ports | 2 |
| Fill Material | No Fill |
| UL 94 Flammability Rating | V-2 |
| Special Features | Self Stripping |
| Maximum Run Conductors | 1 |
| Maximum Run Wire Size | 10 AWG |
| Contact Material | Brass |
| Maximum Tap Wire Size | 16 AWG |
| Compatible Installation Tool Model Number | E-9BM |
| Maximum Run Wire Insulation Diameter | 0.19 in |
| Minimum Run Wire Size | 10 AWG |
| Maximum Operating Temperature | 221 deg F |
| Minimum Tap Wire Size | 18 AWG |
| RoHS Compliant | Yes |
| Contact Finish | Tin |
| Compatible with Product Type | Building Wire, Fixtures, Luminaires, Signs |
| Maximum Tap Wire Insulation Diameter | 0.19 in |
| Maximum Tap Conductors | 1 |
| Maximum Insulation Diameter | 0.145 in |
| Maximum Voltage | 1,000 V |
| Package Quantity | 100 |
