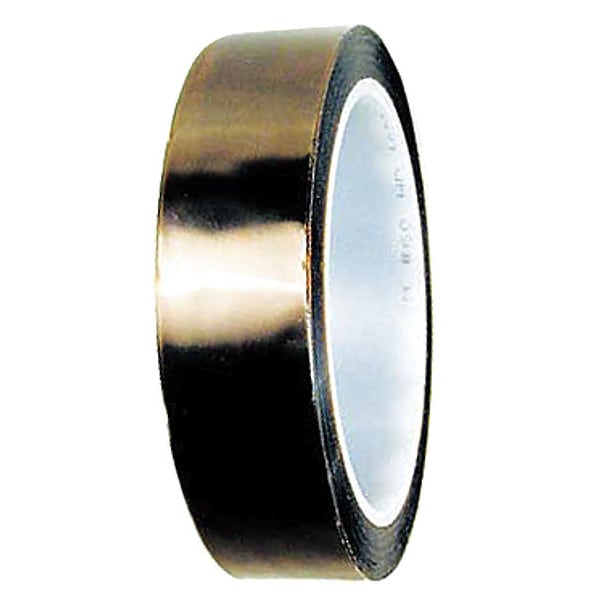

Electrical Tape, 5 mil, 3/4" x 108 ft., PK12
| Tape Color | Transparent |
|---|---|
| Series | 61 |
| Tape Thickness | 7 mil |
| Performance Temp. | Up to 356 Degrees F |
| Item | Insulating Electrical Tape |
| Tape Tensile Strength | 45 lb/in |
| Color | Transparent |
| Width | 3/4 in |
| Length | 36 yd |
| Temperature Range | 32 to 356 deg F |
| Max. Voltage | 15 |
| Tape Backing Material | PTFE |
| Standards | ASTM D1000, RoHS, RoHS 2011/65/EU, UL 510 |
| Material | Backing: PTFE Film; Adhesive: Silicone Thermosetting |
| Shape | Continuous Roll |
| Duct Tape Adhesive | Silicone |
| Adhesion Strength | 35 oz/in |
| UV Resistance | No |
| Elongation | 300% |
| Breakdown Voltage | 15,000 V |
| Metric Tape Width | 19.05 mm |
| Tape Sub-Type | High-Temperature |
| Voltage Rating | 600 V |
| Specifications Met | ASTM, RoHS, UL |
| Tape Adhesive Material | Silicone |
| Printed Message | Unprinted |
| Insulation Resistance | 1.00 x 10^6 megaohm |
| Tape Brand | 3M(TM) |
| Maximum Tape Performance Temperature | 356 deg F |
| Tape Type | Film |
| Imperial Tape Width | 3/4 in |
| Metric Tape Length | 32.92 m |
| Tape Adhesive Format | Single-Sided |
| Product Form | Continuous Roll |
| Package Quantity | 12 |
| Tape Resistance Properties | Chemical-Resistant, Flame-Resistant |
| Minimum Tape Performance Temperature | 32 deg F |
| Breaking Strength | 45 lb/in |
| Imperial Tape Length | 108 ft |
| Tape Backing Construction | Film |
| Adhesion to Steel | 35 oz/in |
| For Temperature Application | High Temperature |
| Pre-Cut Length | Not Applicable |
| Pre-Cut Shape | Not Applicable |
| Pre-Cut Diameter | Not Applicable |
| Pre-Cut Width | Not Applicable |
| Country of Origin (subject to change) | United States |
