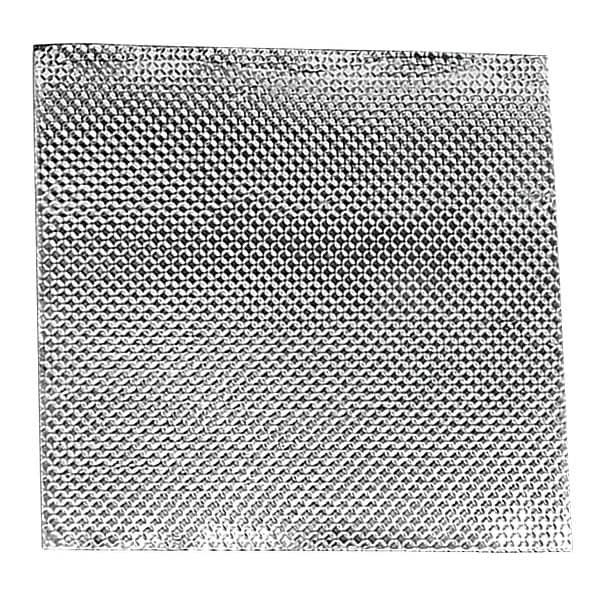

Embossed Foil Tape, 3/4 In x 3/4 In, PK5
| Tape Color | Silver |
|---|---|
| Series | 1345 |
| Tape Thickness | 4 mil |
| Performance Temp. | -40 Degrees to 130 Degrees C |
| Item | Conductive Electrical Tape |
| Tape Tensile Strength | 25 lb/in |
| Color | Silver |
| Width | 3/4 in |
| Length | 3/4 in |
| Standards | RoHS 2011/65/EU, UL Listed |
| Adhesion Strength | 45 oz/in |
| Shape | Square |
| Material | Embossed Tin-Plated Copper Foil |
| Tape Backing Material | Copper Foil |
| Duct Tape Adhesive | Acrylic |
| Duct Tape Length | 3/4 in |
| Duct Tape Width | 3/4 in |
| Number of Adhesive Sides | 1 |
| Product Form | Pre-Cut |
| Adhesion to Steel | 45 oz/in |
| Maximum Tape Performance Temperature | 266 deg F |
| Tape Brand | 3M(TM) |
| Tape Backing Construction | Foil |
| Tape Type | Foil |
| Breaking Strength | 25 lb/in |
| Adhesive Properties | Non-Conductive |
| Package Quantity | 5 |
| Tape Sub-Type | Ultra-Conductive Embossed Foil |
| Tape Adhesive Material | Acrylic |
| Minimum Tape Performance Temperature | -40 deg F |
| Metric Tape Width | 19.1 mm |
| Specifications Met | EU, RoHS, UL Listed |
| Shielding Effectiveness | 66 dB |
| Tape Resistance Properties | Heat-Resistant, Oil-Resistant, Solvent-Resistant |
| Metric Tape Length | 19.1 mm |
| Imperial Tape Width | 3/4 in |
| Tape Properties | Electrically Conductive, Die-Cuttable |
| Voltage Rating | 600 V |
| Liner Included | Yes |
| Imperial Tape Length | 3/4 in |
| Tape Adhesive Format | Single-Sided |
| Backing Material Finish | Tin-Plated |
| Pre-Cut Length | 3/4 in |
| Imperial Tape Shape Diameter | Not Applicable |
| Pre-Cut Width | 3/4 in |
| Pre-Cut Shape | Square |
| Country of Origin (subject to change) | Taiwan, Province of China |
