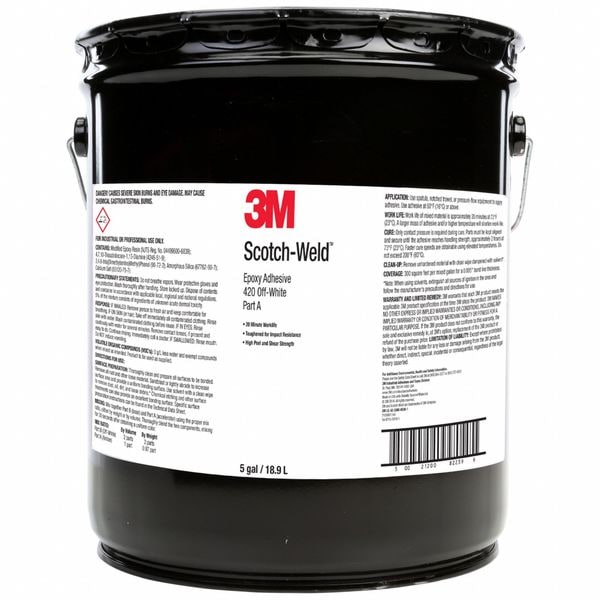

Epoxy Adhesive, 420 Series, White, Pail, 2:01 Mix Ratio, 4 hr Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Color | White |
| For Use On | 3M 420 Epoxy Adhesive Off-White Part B |
| Container Type | Pail |
| Functional Cure | 4 hr |
| Full Cure | 24 Hours @ 72 Degrees F (22 Degrees C) |
| Mixing Ratio | 2:01 |
| Shear Strength | 4,500 psi |
| Working Time | 20 min |
| Series | 420 |
| Resin Color | Off-White |
| Water Resistance | Not Water-Resistant |
| Tensile Strength | 6,132 psi |
| VOC Content Weight | 0 g/L |
| Standards | UL 94 HB |
| Cured Color | Off-White |
| Alternate Product Name | Epoxy Adhesive |
| Features | High Peel and Shear Strength, Reaches High Strength Quickly with Heat Cure, Toughened for Impact and Fatigue Resistance |
| Minimum Viscosity | 8,000 cps |
| Included Components | Hardener Only |
| Resin Type | Epoxy |
| Application Method | Two-part Dispenser |
| Marine Grade | Yes |
| Includes | Hardener Only |
| Peel Strength | 50 piw |
| Resin Volume | 5 gal |
| Primary Applications | Metals |
| Materials Bonded | Carbon Fiber, Ceramics, Glass, Many Composites and Plastics, Metals, Wood |
| Full Cure Time | 24 Hours @ 72 Degrees F (22 Degrees C) |
| Non-Sagging | No |
| Hardener Volume | 5 gal |
| Low Odor | Yes |
| Coverage | 320 sq ft/gal |
| Cure Method | Ambient |
| Maximum Viscosity | 50,000 cps |
| Hardener Color | Amber |
| Hardness at Full Cure | 75 to 80 Shore D |
| Compatible Primer | Scotch-Weld 3901 |
| Interior/Exterior | Exterior, Interior |
| Maximum Performance Temperature | 200 deg F |
| Total Volume | 5 gal |
| For Use With | 3M 420 Epoxy Adhesive Off-White Part B |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
