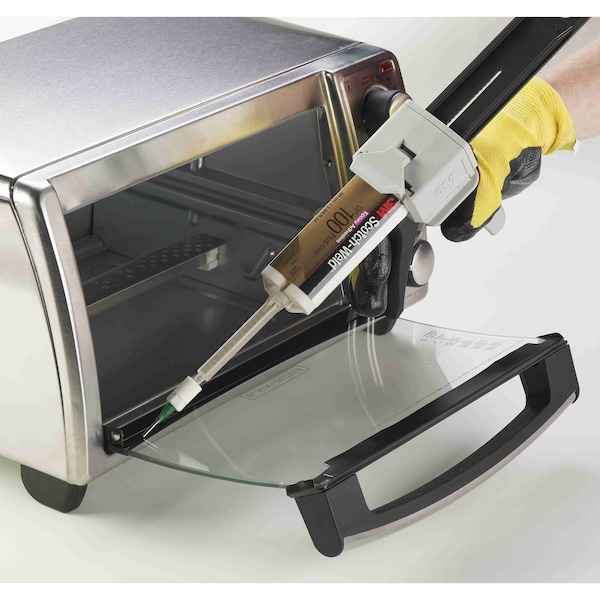

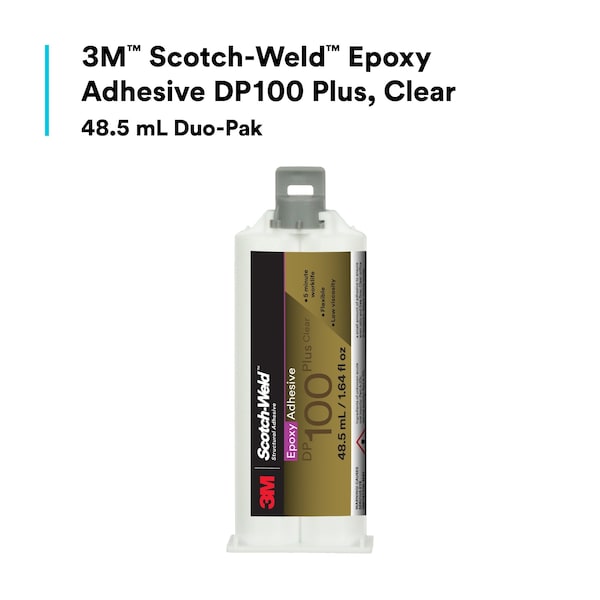

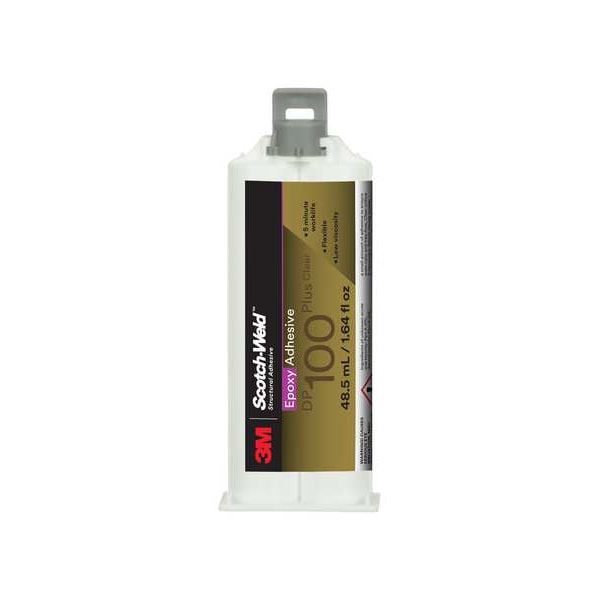

Epoxy Adhesive, DP100Plus Series, Clear, Dual-Cartridge, 1:01 Mix Ratio, 20 min Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Type | Low Viscosity, Fast Cure |
| Application | Bond, Fill, Seal |
| Color | Clear |
| For Use On | 3M(TM) Dispensing Equipment |
| Container Type | Dual-Cartridge |
| Functional Cure | 20 min |
| Full Cure | 48 hr |
| Mixing Ratio | 1:01 |

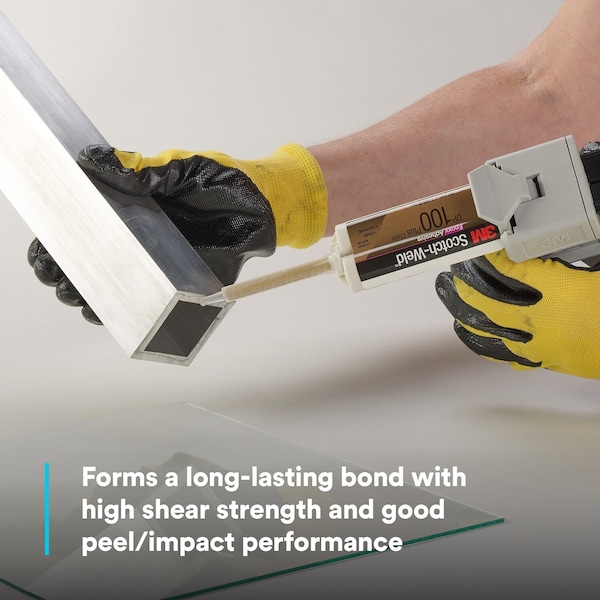

| Shear Strength | 3,500 psi |
| Temp. Range | 73 to 325 deg F |

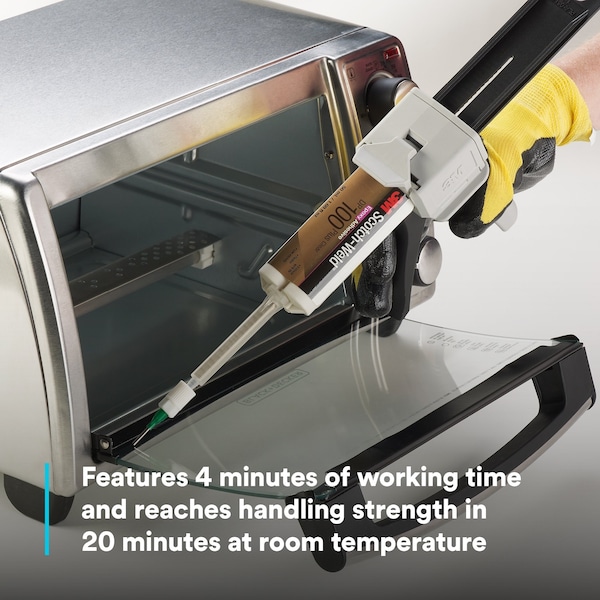

| Working Time | 4 min |
| Series | DP100Plus |
| Temp. Range (F) | 73 to 325 |
| Shear Strength (PSI) | 1,500 |
| Size | 1.64 fl oz |
| Epoxy Color | Clear |
| Epoxy Container | Dual-Cartridge |
| For Use With | 3M(TM) Dispensing Equipment |
| Includes | Resin and Hardener |
| Work Life | 4 min |
| Structural Adhesive Type | Epoxy Adhesive |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Coverage | 320 sq ft/gal |
| Application Method | No Special Application |
| Resin Type | Epoxy |
| VOC Content Weight Percentage | 1% |
| Hardness at Full Cure | 67 Shore D |
| Cured Color | Clear |
| Maximum Viscosity | 19,400 cps |
| Maximum Application Temperature | 80 deg F |
| Compatible Mixer Tip | 3M EPX |
| Included Components | Hardener, Resin |
| Primary Applications | Plastics |
| VOC Content Weight | 7.8 g/L |
| Standards | UL 94 HB |
| Compatible Applicator (Grainger Part Number) | 54XK02 |
| Features | Flexible Bond, Impact Resistant, Vibration Resistant |
| Cure Method | Ambient |
| Water Resistance | Not Water-Resistant |
| Compatible Applicator | 3M EPX |

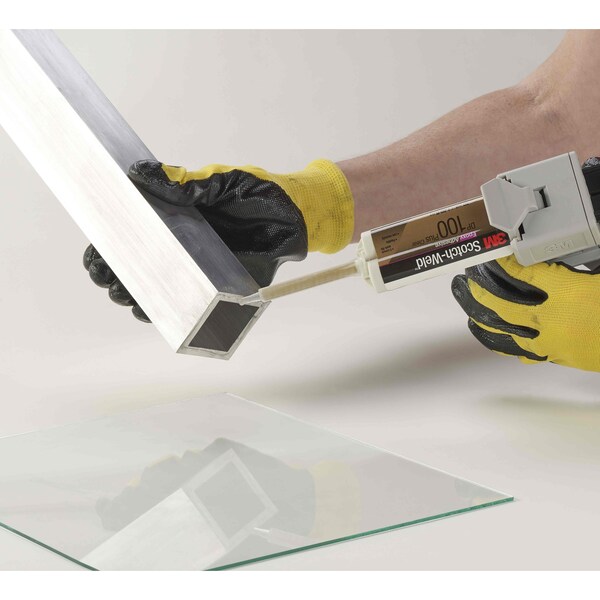

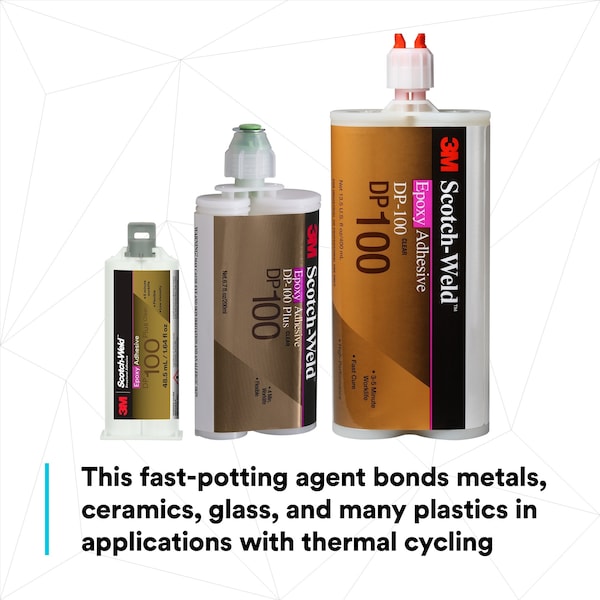

| Materials Bonded | Ceramic, Glass, Metal, Plastic, Rubber, Wood |
| Tensile Strength | 1,850 psi |
| Low Odor | No |
| Marine Grade | No |
| Full Cure Time | 48 hr |
| Non-Sagging | No |
| Minimum Application Temperature | 73 deg F |
| Maximum Performance Temperature | 180 deg F |
| Total Volume | 48.5 mL |
| Interior/Exterior | Exterior, Interior |
| Peel Strength | 13 lb/in |
| Weight | 13.6 oz |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
