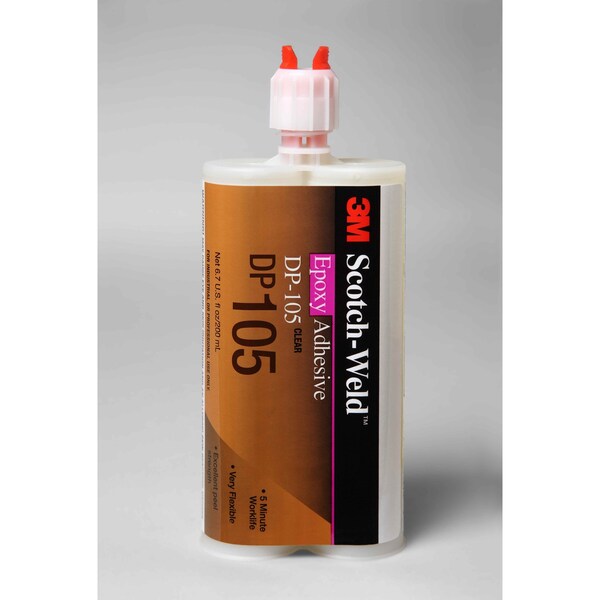

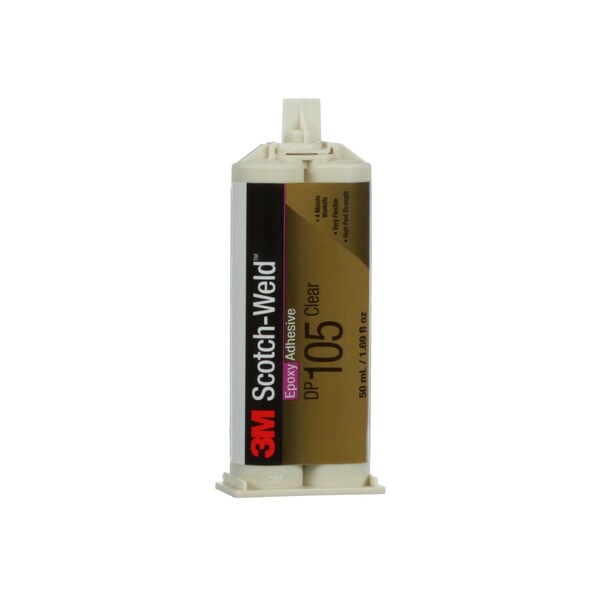

Epoxy Adhesive, DP105 Series, Off-White, Pail, 12 PK, 1:01 Mix Ratio, 20 min Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Application | Ideal for dissimilar surfaces where thermal coefficient of expansion may be a problem. |
| Color | Off-White |
| For Use On | Applicator, Mixing Tip |
| Container Type | Pail |
| Functional Cure | 20 min |
| Full Cure | 48 hr |
| Mixing Ratio | 1:01 |
| Shear Strength | 2,000 psi |
| Temp. Range | -65 to 300 deg F |
| Working Time | 5 min |
| Series | DP105 |
| Epoxy Max. Temp | 300 Degrees F and Above |
| Shear Strength (PSI) | 2,000 |
| Epoxy Container | Dual-Cartridge |
| Structural Adhesive Type | Epoxy Adhesive |
| Work Life | 5 min |
| Size | 6.76 fl oz |
| Epoxy Color | Clear |
| Temp. Range (F) | -65 to 300 |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Includes | Resin and Hardener |
| Coverage | 320 sq ft/gal |
| For Use With | Applicator, Mixing Tip |
| Application Method | No Special Application |
| Resin Type | Epoxy |
| Standards | ASTM D1876, ASTM D2240, ASTM D882, ASTM E1131 |
| Features | Flexible Bond, Impact Resistant, Vibration Resistant |
| Compatible Applicator | 3M EPX |
| Full Cure Time | 48 hr |
| Minimum Viscosity | 1,000 cps |
| Maximum Viscosity | 16,000 cps |
| Minimum Performance Temperature | -65 deg F |
| Resin Color | Clear |
| Included Components | Hardener, Resin |
| Primary Applications | Metals |
| Cured Color | Clear |
| Interior/Exterior | Exterior, Interior |
| Compatible Mixer Tip | 3M EPX |
| Water Resistance | Not Water-Resistant |
| VOC Content Weight Percentage | 1.5% |
| VOC Content Weight | Less than 20 g/L |
| Tensile Strength | 600 psi |
| Non-Sagging | No |
| Cure Method | Ambient |
| Compatible Applicator (Grainger Part Number) | 794HJ1 |
| Marine Grade | No |
| Hardener Color | Clear |
| Maximum Performance Temperature | 180 deg F |
| Low Odor | No |
| Peel Strength | 35 lb/in |
| Total Volume | 200 mL |
| Maximum Application Temperature | 80 deg F |
| Materials Bonded | Ceramic, Glass, Metal, Plastic, Wood |
| Hardness at Full Cure | 27 Shore D |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 12 |
