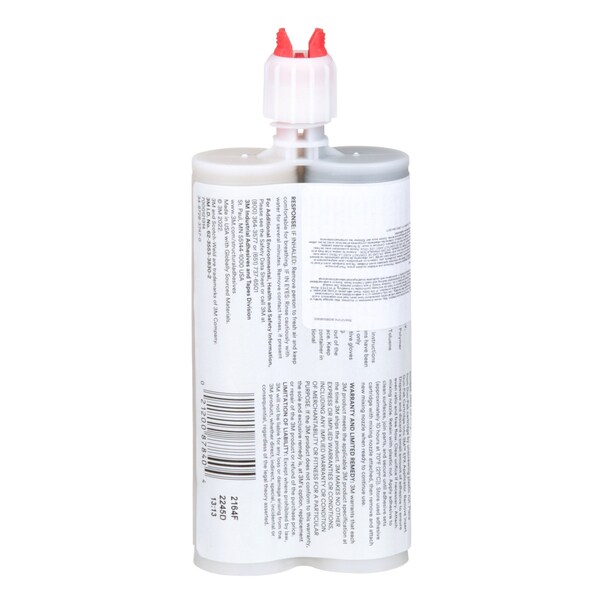

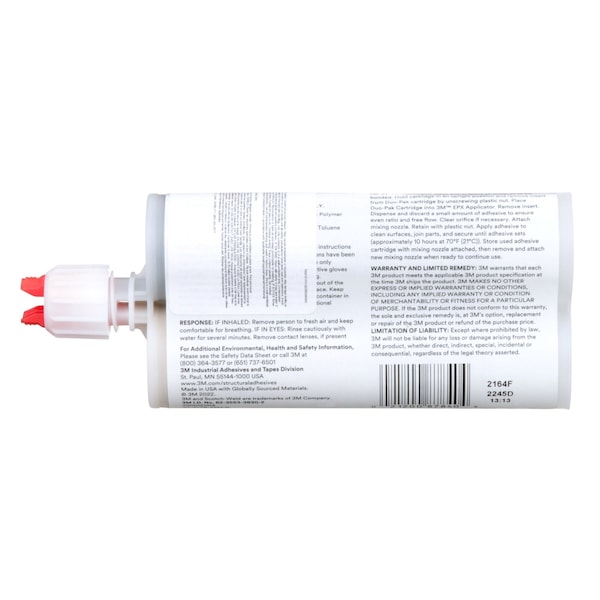

Epoxy Adhesive, DP190 Series, Clear, Dual-Cartridge, 12 PK, 1:01 Mix Ratio, 12 hr Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Type | Duo-Pak |
| Application | For use with EPX Plus Applicator |
| Color | Clear |
| For Use On | Applicator, Mixing Tip |
| Container Type | Dual-Cartridge |
| Functional Cure | 12 hr |
| Full Cure | 7 day |
| Mixing Ratio | 1:01 |
| Shear Strength | 2,500 psi |
| Temp. Range | -65 to 300 deg F |
| Working Time | 90 min |
| Series | DP190 |
| Structural Adhesive Type | Epoxy Adhesive |
| Epoxy Max. Temp | 300 Degrees F and Above |
| Epoxy Container | Dual-Cartridge |
| Temp. Range (F) | -65 to 300 |
| Epoxy Color | Gray |
| Size | 6.76 fl oz |
| Shear Strength (PSI) | 2,500 |
| Work Life | 90 min |
| Includes | Resin and Hardener |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| For Use With | Applicator, Mixing Tip |
| Coverage | 320 sq ft/gal |
| Application Method | No Special Application |
| Resin Type | Epoxy |
| Full Cure Time | 7 days |
| Total Volume | 200 mL |
| VOC Content Weight Percentage | Less Than 0.5% |
| Materials Bonded | Ceramic, Fiberglass, Glass, Metal, Plastic, Rubber, Wood |
| Water Resistance | Not Water-Resistant |
| Maximum Performance Temperature | 180 deg F |
| Compatible Mixer Tip | 3M EPX |
| Peel Strength | 20 lb/in |
| Low Odor | No |
| Hardness at Full Cure | 60 Shore D |
| VOC Content Weight | Less than 5 g/L |
| Interior/Exterior | Exterior, Interior |
| Compatible Accelerator | Scotch-Weld 2216 |
| Minimum Performance Temperature | -65 deg F |
| Compatible Primer | EC-3901 for Glass |
| Compatible Applicator (Grainger Part Number) | 794HJ1 |
| Tensile Strength | 2,500 psi |
| Marine Grade | No |
| Included Components | Hardener, Resin |
| Features | Flexible, High Shear and Peel Strength |
| Non-Sagging | No |
| Maximum Application Temperature | 80 deg F |
| Primary Applications | General Purpose |
| Standards | UL 94 HB |
| Cure Method | Ambient |
| Cured Color | Gray |
| Maximum Viscosity | 100,000 cps |
| Compatible Applicator | 3M EPX |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 12 |
