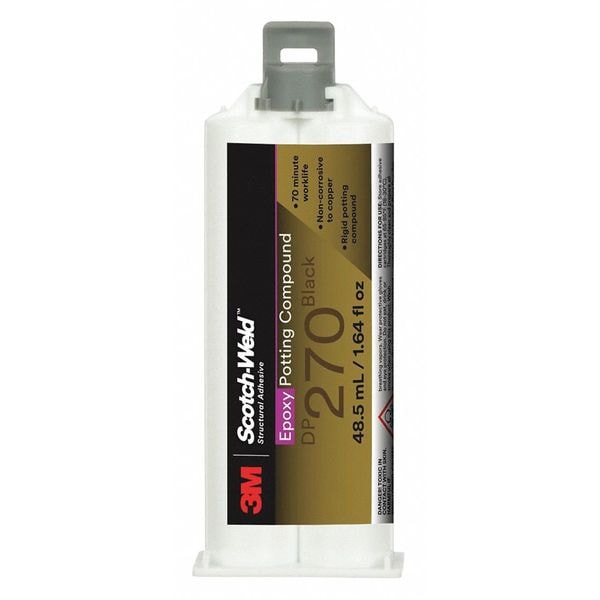

Epoxy Adhesive, DP270 Series, Black, Dual-Cartridge, 1:01 Mix Ratio, 1 hr Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Type | Noncorrosive |
| Application | Bonding, Potting |
| Color | Black |
| For Use On | 3M(TM) Dispensing Equipment |
| Container Type | Dual-Cartridge |
| Functional Cure | 1 hr |
| Full Cure | 48 hr |
| Mixing Ratio | 1:01 |
| Shear Strength | 2,500 psi |
| Temp. Range | 0 to 72 deg F |
| Working Time | 1 hr |
| Series | DP270 |
| Size | 1.64 fl oz |
| Structural Adhesive Type | Epoxy Adhesive |
| Epoxy Color | Black |
| For Use With | 3M(TM) Dispensing Equipment |
| Temp. Range (F) | 0 to 72 |
| Epoxy Container | Dual-Cartridge |
| Includes | Resin and Hardener |
| Work Life | 75 min |
| Shear Strength (PSI) | 2450 to 2500 |
| Coverage | 320 sq ft/gal |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Application Method | No Special Application |
| Resin Type | Epoxy |
| Compatible Applicator (Grainger Part Number) | 54XK02 |
| Standards | UL 94 HB |
| Included Components | Hardener, Resin |
| Maximum Viscosity | 16,000 cps |
| Low Odor | No |
| Cure Method | Ambient |
| Primary Applications | Potting |
| Non-Sagging | No |
| VOC Content Weight | Less than 10 g/L |
| Water Resistance | Not Water-Resistant |
| Tensile Strength | 2,450 to 2,500 psi |
| Cured Color | Black |
| Maximum Performance Temperature | 180 deg F |
| Minimum Application Temperature | 0 deg F |
| Hardness at Full Cure | 83 Shore D |
| Full Cure Time | 48 hr |
| Compatible Applicator | 3M EPX |
| Total Volume | 48.5 mL |
| Interior/Exterior | Exterior, Interior |
| Compatible Mixer Tip | 3M EPX |
| Peel Strength | 2 lb/in |
| Marine Grade | No |
| Maximum Application Temperature | 80 deg F |
| Minimum Viscosity | 6,000 cps |
| Materials Bonded | Ceramic, Composite, Glass, Metal, Plastic |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
