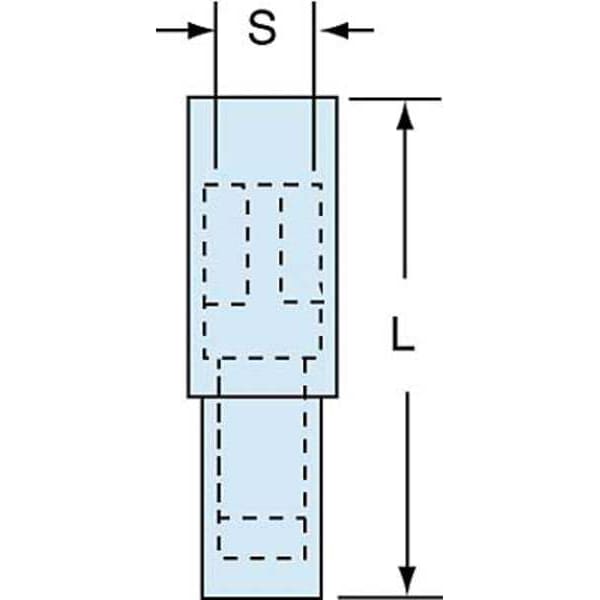

Desconector hembra para bala, color azul, calibre 16-14 AWG, paquete de 1000 unidades.
| Item | Female Bullet Disconnect |
|---|---|
| Insulation | Partial |
| Insulation Color | Blue |
| Insulation Type | Nylon |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Overall Length | 1.02 in |
| Tab Size | 0.187 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Barrel Inside Dia. | 0.115 in |
| Connection Material | Tin-Plated Brass |
| Terminal Type | Disconnect |
| Pad Width | 0.18 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| Barrel Length | 1/4 in |
| Maximum Conductor Size | 14 AWG |
| Terminal Style | Bullet Snap Plug |
| Mating Snap Diameter (S) | 0.18 in |
| Disconnect Type | Female Disconnect |
| Fastener Orientation | Female |
| Barrel Inside Diameter | 0.115 in |
| Tab Width | 0.187 in |
| Minimum Conductor Size | 16 AWG |
| Insulation Material | Nylon |
| Connection Width | 0.18 in |
| Package Quantity | 1000 |
