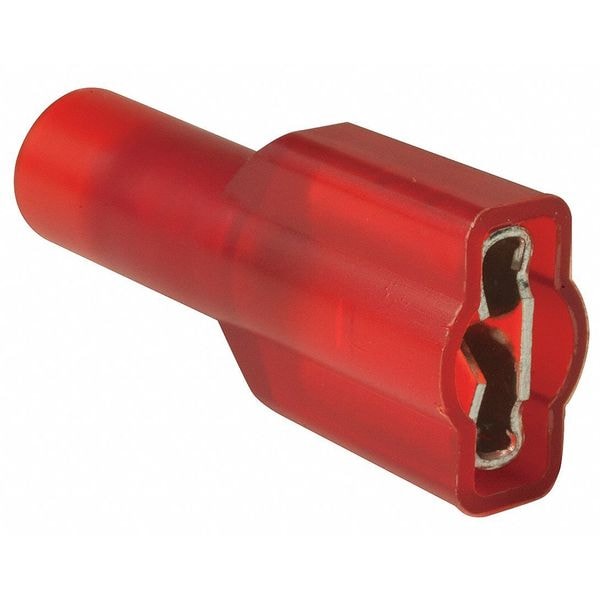

Desconexión hembra, Rojo, 22-18AWG, paquete de 100
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| Insulation Color | Red |
| Wire Range | 22 to 18 AWG |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Tab Size | 0.020 in x 0.187 in |
| Overall Length | 0.81 in |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Barrel Inside Dia. | 0.085 in |
| Connection Material | Tin-Plated Copper |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Terminal Type | Female Disconnect |
| Mates with Female Width | 0.187 in |
| Overall Diameter | 0.23 in |
| Tab Width | 1/4 in |
| Diameter (D) | 0.23 in |
| Barrel Inside Diameter | 0.085 in |
| Overall Width | 0.3 in |
| Maximum Conductor Size | 18 AWG |

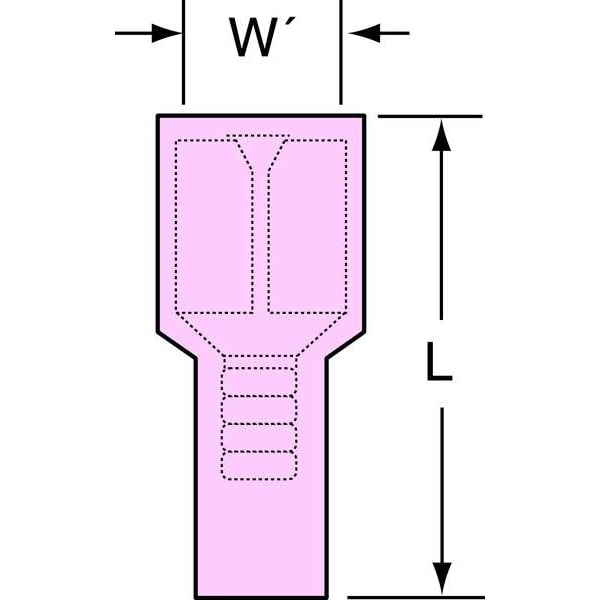

| Mates with Male Tab Width (W') | 0.187 in |
| Terminal Style | Fully Insulated |
| Fastener Orientation | Female |
| Minimum Conductor Size | 22 AWG |
| Disconnect Type | Female Disconnect |
| Connection Width | 0.187 in |
| Maximum Insulation Outer Diameter | 0.145 in |
| Pad Width | 0.187 in |
| Package Quantity | 100 |
