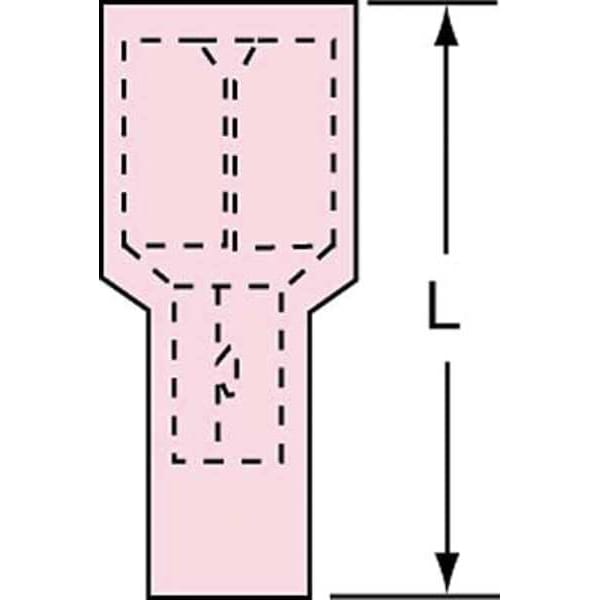

Desconexión hembra, roja, calibre 22-18, paquete de 1000.
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| Insulation Color | Red |
| Insulation Type | Nylon |
| Wire Range | 22 to 18 AWG |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.91 in |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Connection Material | Tin-Plated Brass |
| Standards | CSA Certified, UL Listed |
| Barrel Inside Dia. | 0.076 in |
| Minimum Operating Temperature | -40 deg F |
| Insulation Coverage | Full Coverage |
| Contact Material | Brass |
| Tab Width | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Special Features | Allows for Quick and Easy Disconnect of Wires, Dents and Rolled Edges of this Female Disconnect Terminal Offer Excellent Holding Force |
| Barrel Outside Diameter | 0.145 in |
| RoHS Compliant | Yes |
| Minimum Wire Size | 22 AWG |
| Termination Style | Crimp |
| Insulation Material | Nylon |
| Barrel Style | Interlocking |
| Tab Thickness | 0.032 in |
| Barrel Inside Diameter | 0.076 in |
| Contact Finish | Tin |
| Seam Style | Butted |
| Maximum Wire Size | 18 AWG |
| Maximum Voltage | 600 V |
| Barrel Size | Standard |
| Terminal Type | Socket |
| Mates with Male Tab Width (W') | 1/4 in |
| Fastener Orientation | Female |
| Barrel Length | 1/4 in |
| Disconnect Type | Female Disconnect |
| Male Tab Width (W') | 1/4 in |
| Mates with Female Width | 1/4 in |
| Terminal Style | Fully Insulated |
| Package Quantity | 1 |
