Desconexión hembra, rojo, 22-18AWG, paquete de 25
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| Insulation Color | Red |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Wire Range | 22 to 18 AWG |
| Tab Size | 0.020 in x 0.187 in |
| Overall Length | 0.81 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Connection Material | Tin-Plated Brass |
| Barrel Inside Dia. | 0.085 in |
| Terminal Type | Disconnect |
| Barrel Length | 1/4 in |
| Terminal Style | Fully Insulated |
| Fastener Orientation | Female |
| Agency Approvals | UL and CSA |
| Maximum Insulation Outer Diameter | 0.145 in |
| Insulation Material | Nylon |
| Conductor Sizes | 22 to 18 AWG |
| Length | 0.81 in |
| Pad Width | 0.187 in |
| Diameter | 0.23 in |
| Width | 0.3 in |
| Barrel Style | Butted |
| Thickness | 0.02 in |

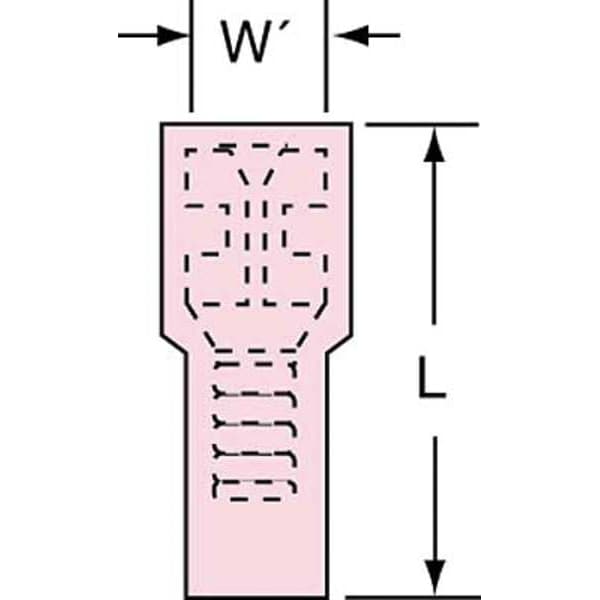

| Mates with Male Tab Width (W') | 0.187 in |
| Package Quantity | 25 |
