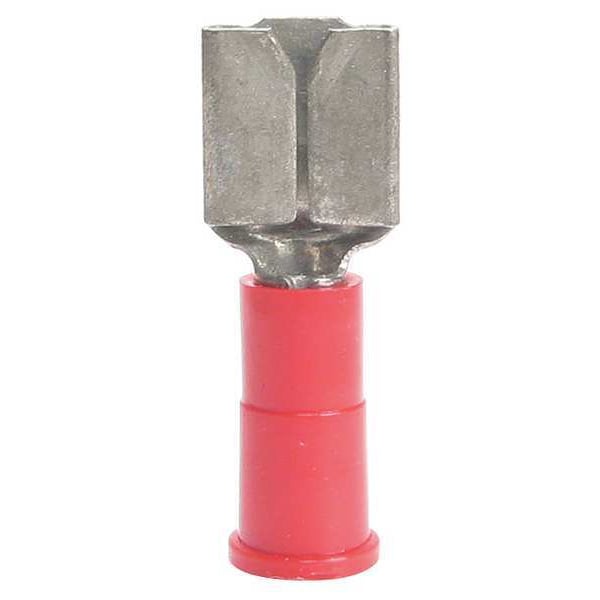

Female Disconnect, Red, 22-18AWG, PK25
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| Material | Plastic |
| Insulation Color | Red |
| Insulation Type | Vinyl |
| Wire Range | 22 to 18 AWG |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.87 in |
| Seam | Butted |
| Max. Voltage | 1,000 V |
| Max. Temp. | 221 deg F |
| Barrel Inside Dia. | 0.08 in |
| Connection Material | Tin-Plated Brass |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Terminal Type | Standard |
| Maximum Wire Gauge | 18 AWG |
| Pad Width | 1/4 in |
| Maximum Recommended Voltage Rating | 600 V |
| Mates with Male Tab Width (W') | 1/4 in |
| Minimum Wire Gauge | 22 AWG |
| Barrel Inside Diameter | 0.08 in |
| Maximum Conductor Size | 18 AWG |
| Connection Width (Metric) | 6.35 mm |
| Conductor Size | 22 to 18 AWG |
| Barrel Length (Metric) | 6.35 mm |
| Connection Width (Imperial) | 0.25 in |
| Terminal Style | Standard |
| Fastener Orientation | Female |
| Minimum Conductor Size | 22 AWG |
| Mates with Female Width | 1/4 in |
| Overall Length (Imperial) | 0.87 in |
| Max. Number of Cores | 419 |
| Maximum Insulation Outer Diameter (Metric) | 3.7 mm |
| Barrel Length (Imperial) | 0.25 Inch |
| Maximum Insulation Outside Diameter | 0.145 in |
| Insulation Material | Vinyl |
| Disconnect Type | Female Disconnect |
| Maximum Insulation Outer Diameter (Imperial) | 0.145 in |
| Tab Width | 0.25 |
| Barrel Style | Butted |
| Maximum Voltage Rating | 600 to 1,000 V |
| Overall Length (Metric) | 22.098 mm |
| Package Quantity | 25 |
