Bandera hembra de desconexión rápida, sin recubrimiento, calibre 22-18AWG, paquete de 1000 unidades.
| Item | Female Flag Disconnect |
|---|---|
| Insulation | None |
| Insulation Color | Bare |
| Connection Type | Crimp |
| Insulation Type | Bare |
| Wire Range | 22 to 18 AWG |
| Overall Length | 0.46 in |
| Tab Size | 0.020 in x 0.187 in |
| Seam | Butted |
| Max. Temp. | 347 deg F |
| Max. Voltage | 600 V |
| Connection Material | Brass |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Barrel Inside Dia. | 0.075 in |
| Terminal Type | Disconnect |
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-insulated |

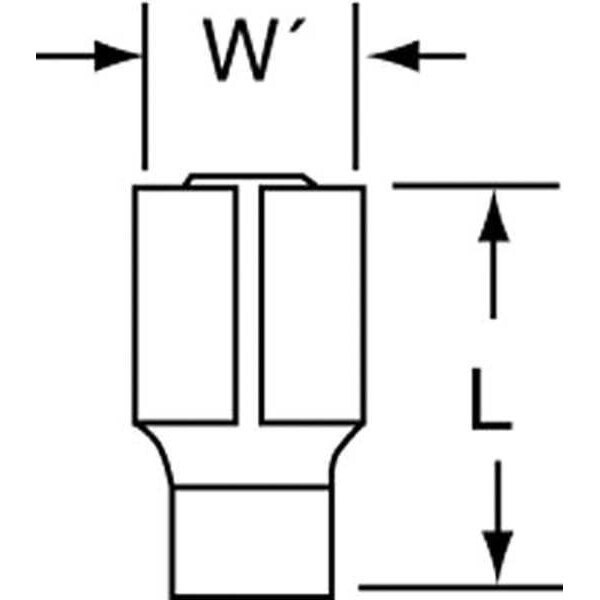

| Mates with Male Tab Width (W') | 0.187 in |
| Tab Width | 1/4 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Fastener Orientation | Female |
| Pad Width | 0.187 in |
| Barrel Length | 0.2 in |
| Connection Width | 0.187 in |
| Mates with Female Width | 0.187 in |
| Maximum Conductor Size | 18 AWG |
| Minimum Conductor Size | 22 AWG |
| Terminal Style | Flag |
| Barrel Inside Diameter | 0.075 in |
| Package Quantity | 1000 |
