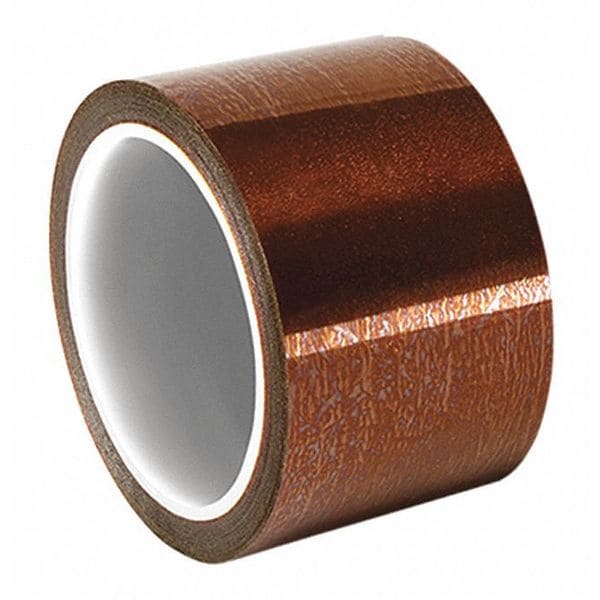

Film Tape, Polyimide, Amber, 4 In. x 5 Yd.
| Item | Film Tape |
|---|---|
| Tape Backing Material | Polyimide |
| Tape Width | 4 in |
| Tape Length | 5 yd |
| Tape Shape | Continuous Roll |
| Series | 1205 |
| Tape Adhesive | Acrylic |
| Tape Thickness | 3 mil |
| Min. Tape Performance Temp. | 311 deg F |
| Max. Tape Performance Temp. | 310 deg F |
| Tape Tensile Strength | 30 lb/in |
| Tape Adhesive Strength | 35 oz/in |
| Tape Color | Amber |
| Tape Core Diameter | 3 in |
| Material | Polyimide |
| Tape Elongation | 55% |
| Tape Application | Wrapping Coils, Transformers, Capacitors and Wire Harnesses |
| Standards | UL 510; ASTM D 1000 |
| Width | 4 in |
| Number of Adhesive Sides | 1 |
| Tape Adhesive Format | Single-Sided |
| Breaking Strength | 30 lb/in |
| Tape Resistance Properties | Heat-Resistant, Solvent-Resistant |
| Metric Tape Length | 4.57 m |
| Adhesion to Steel | 35 oz/in |
| Insulation Resistance | 1.00 x 10^6 megaohm |
| Adhesive Properties | Pressure Sensitive Adhesive |
| Minimum Tape Performance Temperature | -40 deg F |
| Tape Backing Construction | Film |
| Package Quantity | 1 |
| Tape Sub-Type | High-Temperature |
| Maximum Tape Performance Temperature | 311 deg F |
| Tape Conformability | High Conformability |
| Specifications Met | RoHS, UL |
| Printed Message | Unprinted |
| Tape Brand | 3M(TM) |
| Imperial Tape Width | 4 in |
| Breakdown Voltage | 6,000 V |
| Metric Tape Width | 101.6 mm |
| Self-extinguishing | Yes |
| Environment | High Temperature |
| Liner Included | No Liner |
| Product Form | Continuous Roll |
| Voltage Rating | Not Rated |
| Tape Properties | Pressure Sensitive Adhesive |
| Tape Type | Film |
| Elongation | 55 % |
| Liner Material | Not Applicable |
| Imperial Tape Length | 15 ft |
| Performance Temp. Range | Up to 311 Degrees F |
| Pre-Cut Shape | Not Applicable |
| Pre-Cut Width | Not Applicable |
| For Temperature Application | High Temperature |
| Pre-Cut Length | Not Applicable |
| Pre-Cut Diameter | Not Applicable |
| Country of Origin (subject to change) | United States |
