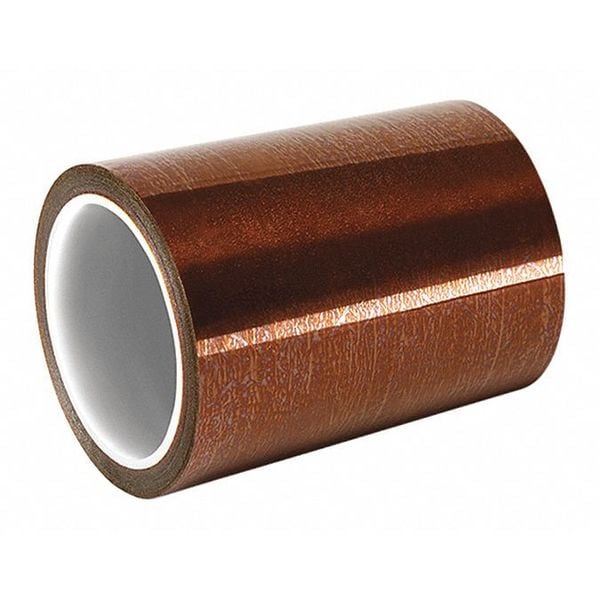

Film Tape, Polyimide, Amber, 4 In. x 5 Yd.
| Item | Film Tape |
|---|---|
| Tape Backing Material | Polyimide |
| Tape Width | 4 in |
| Tape Length | 5 yd |
| Tape Shape | Continuous Roll |
| Series | 5413 |
| Tape Adhesive | Silicone |
| Tape Thickness | 2.7 mil |
| Min. Tape Performance Temp. | -100 deg F |
| Max. Tape Performance Temp. | 500 deg F |
| Tape Tensile Strength | 33 lb/in |
| Tape Adhesive Strength | 20 oz/in |
| Tape Color | Amber |
| Material | Polyimide |
| Tape Application | Wave Soldering; Protection for Bar Code Labels |
| Tape Elongation | 62% |
| Width | 4 in |
| Standards | ASTM D3330; D3759; D3652; D149 |
| Number of Adhesive Sides | 1 |
| Liner Included | No Liner |
| Tape Properties | Chemical-Resistant, Flame-Retardant, Radiation-Resistant |
| Printed Message | Unprinted |
| Liner Material | Not Applicable |
| Metric Tape Width | 101.6 mm |
| Adhesion to Steel | 22 oz/in |
| Metric Tape Length | 4.57 m |
| Self-extinguishing | Yes |
| Maximum Tape Performance Temperature | 500 deg F |
| Tape Backing Construction | Film |
| Environment | High Temperature |
| Minimum Tape Performance Temperature | -100 deg F |
| Imperial Tape Length | 15 ft |
| Tape Sub-Type | High-Temperature |
| Tape Type | Film |
| Voltage Rating | Not Rated |
| Imperial Tape Width | 4 in |
| Tape Brand | 3M(TM) |
| Breakdown Voltage | 7,000 V |
| Adhesive Properties | Chemical Resistant, Flame-Retardant, Radiation Resistant |
| Product Form | Continuous Roll |
| Elongation | 62 % |
| Breaking Strength | 33 lb/in |
| Tape Adhesive Format | Single-Sided |
| Tape Resistance Properties | Chemical-Resistant, Flame-Retardant, Heat-Resistant, Radiation-Resistant |
| Package Quantity | 1 |
| Specifications Met | ASTM |
| Performance Temp. Range | -100 to 500 deg F |
| Pre-Cut Width | Not Applicable |
| Pre-Cut Diameter | Not Applicable |
| Pre-Cut Shape | Not Applicable |
| Pre-Cut Length | Not Applicable |
| For Temperature Application | High Temperature |
| Country of Origin (subject to change) | United States |
