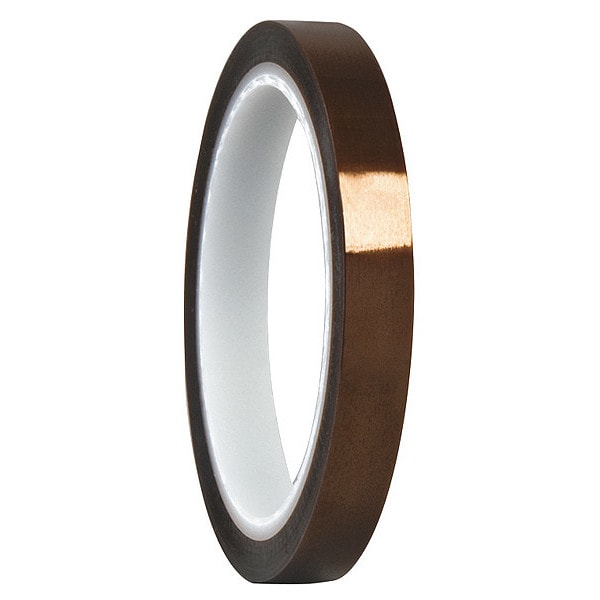

Film Tape, Polyimide, Gold, 1/2 In x 36 Yd
| Item | Film Tape |
|---|---|
| Tape Backing Material | Polyimide |
| Tape Width | 1/2 in |
| Tape Length | 36 yd |
| Tape Shape | Continuous Roll |
| Series | 5419 |
| Tape Adhesive | Silicone |
| Tape Thickness | 2.7 mil |
| Min. Tape Performance Temp. | -100 deg F |
| Max. Tape Performance Temp. | 500 deg F |
| Tape Tensile Strength | 33 lb/in |
| Tape Adhesive Strength | 20 oz/in |
| Tape Color | Gold |
| Material | Polyimide |
| Tape Application | Unique and Extremely Low Electrostatic Discharge Properties |
| Tape Elongation | 60% |
| Width | 1/2 in |
| Standards | RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC; ASTM D3330; ASTM D3759; ASTM D3652; ASTM D149; ASTM E-595 |
| Number of Adhesive Sides | 1 |
| Minimum Tape Performance Temperature | -100 deg F |
| Adhesion to Steel | 20 oz/in |
| Metric Tape Width | 12.7 mm |
| Liner Included | No Liner |
| Tape Adhesive Format | Single-Sided |
| Voltage Rating | Not Rated |
| Tape Brand | 3M(TM) |
| Elongation | 60 % |
| Tape Properties | Extremely Low Electrostatic Discharge |
| Imperial Tape Width | 1/2 in |
| Metric Tape Length | 32.99 m |
| Tape Type | Film |
| Liner Material | Not Applicable |
| Tape Backing Construction | Film |
| Breakdown Voltage | 7,000 V |
| Tape Sub-Type | High-Temperature |
| Specifications Met | IEC |
| Environment | High Temperature |
| Breaking Strength | 33 lb/in |
| Imperial Tape Length | 108 ft |
| Printed Message | Unprinted |
| Insulation Resistance | 1.00 x 10^6 ohm |
| Maximum Tape Performance Temperature | 500 deg F |
| Product Form | Continuous Roll |
| Package Quantity | 1 |
| Performance Temp. Range | -100 to 500 deg F |
| Pre-Cut Width | Not Applicable |
| Pre-Cut Shape | Not Applicable |
| Pre-Cut Diameter | Not Applicable |
| For Temperature Application | High Temperature |
| Pre-Cut Length | Not Applicable |
| Country of Origin (subject to change) | United States |
