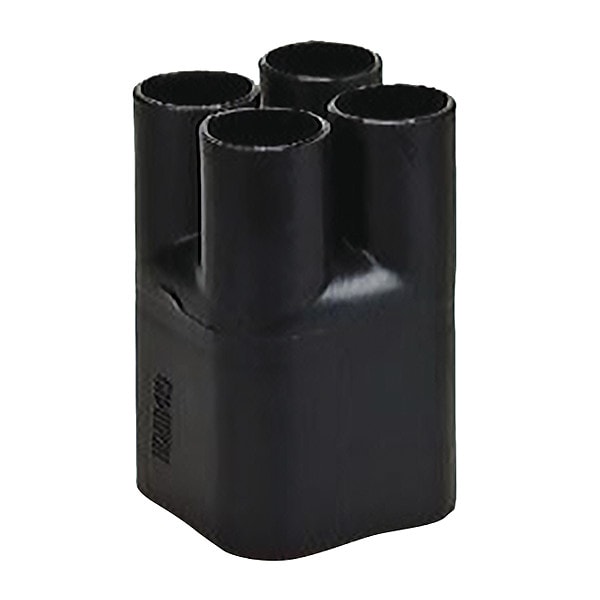

Heat Shrink Breakout Boot
| Item | Heat Shrink Breakout Boot |
|---|---|
| Shrink Ratio | Not Applicable |
| Material | Polyolefin |
| Color | Black |
| Length | 9 in |
| Temp. Range | -67 to 230 deg F |
| Max. Voltage | 1,000 |
| Number of Outlets | 4 |
| Shrink Tubing Material | Polyolefin |
| Flame Retardant | Yes |
| Heat Shrink Breakout Boot Type | Heat Shrink Breakout Boot |
| Outlet I.D. After Shrinking | 0.55 in |
| Cable End I.D. Before Shrinking | 5-1/4 in |
| Cable End I.D. After Shrinking | 3 in |
| Shrink Tube Material Type | Semi Rigid |
| Standards | DOD-STD-2003-1, NAVSEA |
| Shrink Tubing Wall Thickness After Shrinking | 0.14 in |
| Outlet I.D. Before Shrinking | 1.35 in |
| Heat Shrink Breakout Boot Length | 9 in |
| I.D. After Shrinking | 3 in |
| I.D. Before Shrinking | 5-1/4 in |
| Shrink Tubing Properties | Abrasion Resistant, Acid and Alkali Resistant |
| Dielectric Strength | Not Applicable |
| Min. Temp. Rating | -67 deg F |
| Breakout I.D. After Shrinking | 0.55 in |
| Adhesive Lined | Yes |
| Breakout I.D. Before Shrinking | 1.35 in |
| Max. Temp. Rating | 230 deg F |
| Number of Breakouts | 4 |
| Wall Thickness After Shrinking | 0.14 in |
| Length (Straight Wireway) | 9 in |
| Package Quantity | 1 |
