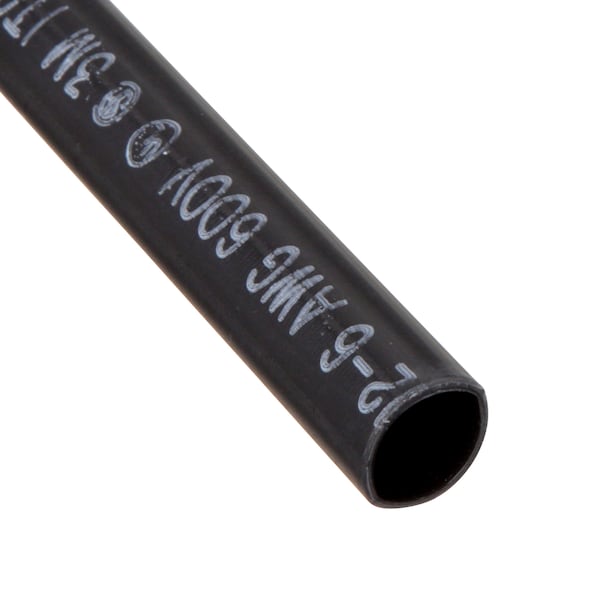

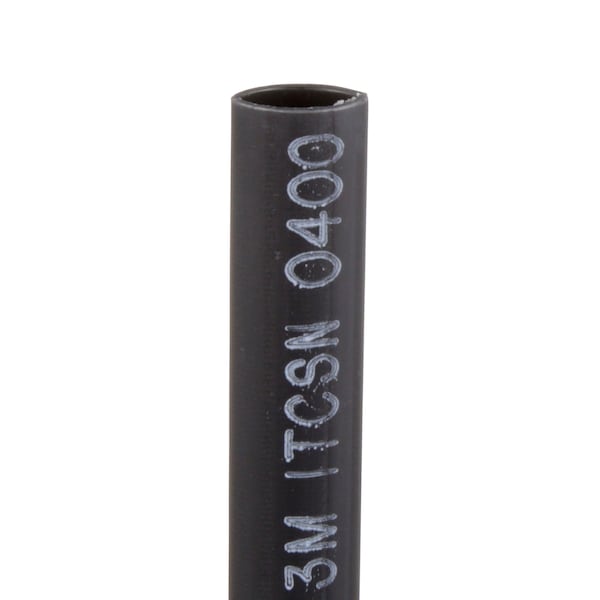

Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.4 in I.D. Before Shrinking, Black, 25 ft
| Item | Heat Shrink Tube |
|---|---|
| Shrink Ratio | 3:1 |
| Wall Type | Heavy Wall |
| Shrink Tubing I.D. Before Shrinking | 0.4 in |
| Shrink Tubing I.D. After Shrinking | 0.15 in |
| Material | Cross-Linked Polyolefin |
| Color | Black |
| Length | 25 ft |
| Use with Wire Size | 12 to 6 AWG |
| Temp. Range | -67° to 230°F |
| Min. Shrink Temp. | 250°F |
| Shrink Tubing Wall Thickness After Shrinking | 0.08 in |
| Max. Voltage | 1,000 V |
| Features | Suitable for Insulating Secondary Splices |
| Flame Retardant | No |
| Standards | CSA File LR38227, RoHS 2011/65/EU, UL 486D |
| Tubing Wall Type | Heavy Wall |
| Adhesive Lined | No |
| Shrink Tubing Properties | Abrasion Resistant, Acid and Alkali Resistant, UV Light Resistant |
| Min. Temp. Rating | -67 deg F |
| Wall Thickness After Shrinking | 0.08 in |
| Package Style | Cut to Length |
| Max. Temp. Rating | 230 deg F |
| Dielectric Strength | 500 V |
| I.D. After Shrinking | 0.15 in |
| I.D. Before Shrinking | 0.4 in |
| Package Quantity | 1 |
