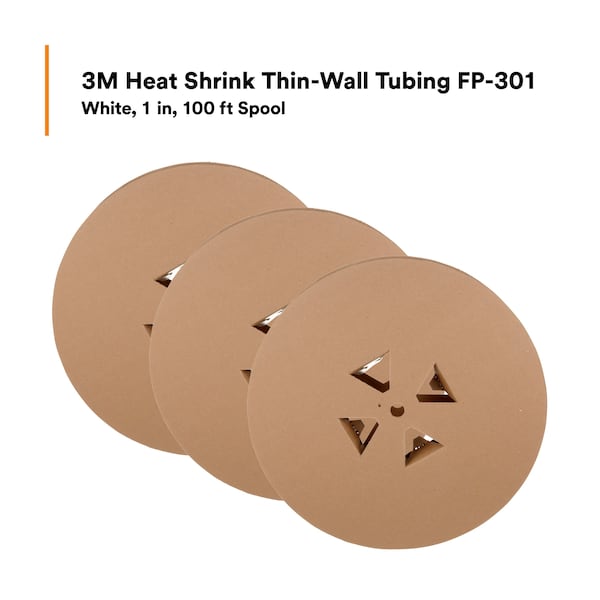

Heat Shrink Tube, Thin Wall, 2:1 I.D. Shrink Ratio, 1 in I.D. Before Shrinking, White, 100 ft, 3 PK
| Item | Heat Shrink Tube |
|---|---|

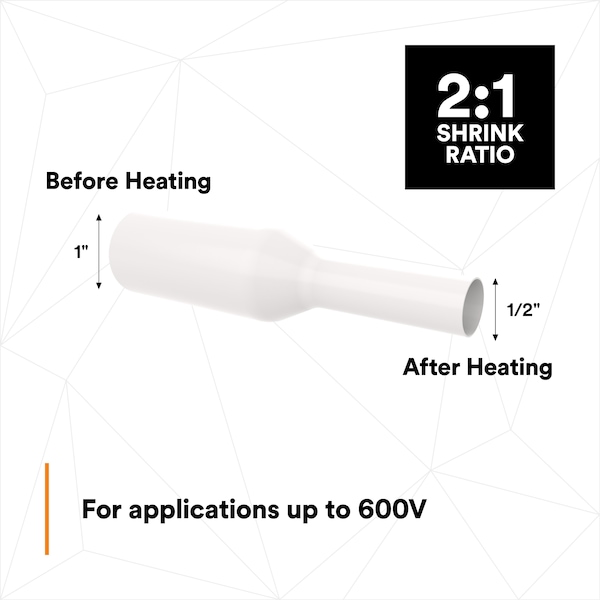

| Shrink Ratio | 2:1 |
| Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1 in |
| Shrink Tubing I.D. After Shrinking | 1/2 in |
| Material | Polyolefin |
| Color | White |
| Length | 100 ft |
| Use with Wire Size | 4/0 to 500 MCM |
| Temp. Range | -67° to 275°F |
| Min. Shrink Temp. | 212°F |
| Shrink Tubing Material Type | Flexible |
| Max. Voltage | 600 V |
| Shrink Tubing Wall Thickness After Shrinking | 0.035 in |
| Features | Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections |
| Flame Retardant | Yes |
| Standards | CSA Certified, RoHS 2011/65/EU, UL E39100 |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | No |
| Shrink Tubing Properties | Acid and Alkali Resistant, Solvent Resistant |
| Min. Temp. Rating | -67 deg F |
| Max. Temp. Rating | 275 deg F |
| Dielectric Strength | 600 V |
| Package Style | Cut to Length |
| Wall Thickness After Shrinking | 0.04 in |
| I.D. After Shrinking | 1/2 in |
| I.D. Before Shrinking | 1 in |
| Shrink Tube Material Type | Flexible |
| Package Quantity | 3 |
