Hot Melt Adhesive, Off White, 5/8 in Dia, 2 in L, 30 sec Begins to Harden, 528 PK
| Item | Hot Melt Adhesive |
|---|---|
| Product Form | Smooth Sticks |
| Diameter | 5/8 in |
| Length | 2 in |
| Materials Bonded | Paper, Plastic, Wood |
| Working Time | 30 sec |
| Melting Temperature | 250 Degrees to 380 Degrees F |
| Begins to Harden | 30 sec |
| Color | Off White |
| Electrically Insulating | No |
| High Tack | No |
| Series | 3797 |
| Peel Strength | 10 psi |
| Full Cure | 24 hr |

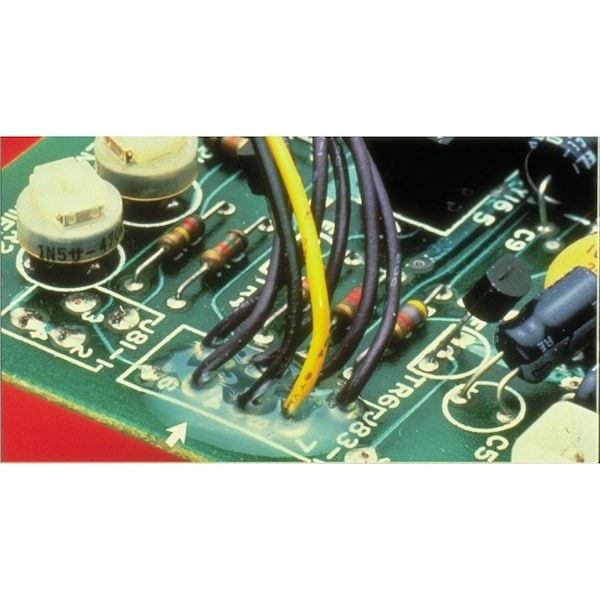

| Application | Attaching Components on PC Boards, Cable Strain Relief, Coil Terminating, Good For Electrical Potting, Rigidizing Components, Wire Fastening |

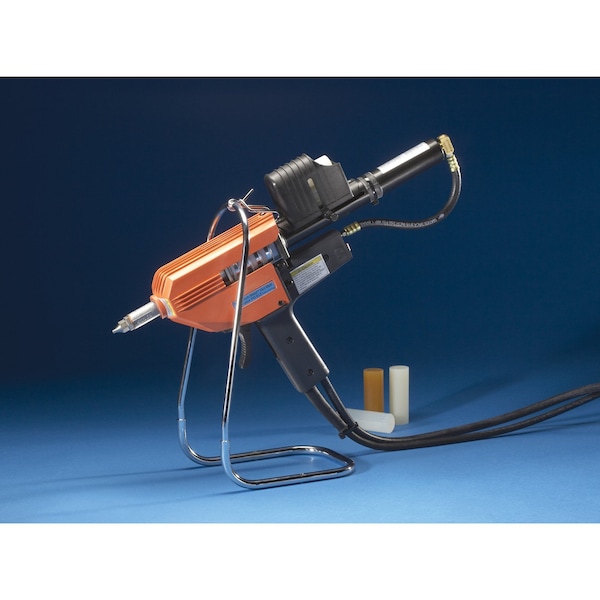

| For Use With | Mfr. No. POLYGUN TC |
| Substrates | Many Acrylics and Some Polyolefin |
| Melting Temp. - Glues | 170 Degrees F |
| Temp. Range | -20 to 290 deg F |
| Length - Glue Sticks | 2 in |
| Shear Strength | 350 psi |
| Characteristics | Good Resistance to Flow at Elevated Temperatures |
| Tensile Strength | 283 psi |
| Diameter - Glue Sticks | 5/8 in |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Primary Applications | Electronics |
| Minimum Viscosity | 2,650 cps |
| Low Odor | No |
| Maximum Viscosity | 2,650 cps |
| Features | 100% Solids, For Use With 3M Hot Melt Applicator PG II, Heat Resistant, Low Viscosity Adhesive Flows Easily Into Small Areas for Effective Coverage and Protection, Quick 30 sec Open Bead Time for Potting Even At Depth, Thermoplastic |
| UV Resistant | No |
| Compatible Applicator Size | TC |
| FDA Compliance | 21 CFR 175.105 |
| Full Cure Time | 24 hr |
| Pressure Sensitive | No |
| Open Time | 30 sec |
| Product Format | Smooth Sticks |
| Minimum Performance Temperature | -20 deg F |
| Maximum Performance Temperature | 290 deg F |
| Material | Wood, Paper, Plastic |
| Begins to Harden - Adhesives | 30 sec |
| Full Cure Time - Adhesives | 24 hr |
| Country of Origin (subject to change) | United States |
| Package Quantity | 528 |
