Instant Adhesive, DP270 Series, Clear, 0.7 oz, Bottle, 1:01 Mix Ratio, 3 hr Functional Cure
| Item | Instant Adhesive |
|---|---|
| Type | Compound |

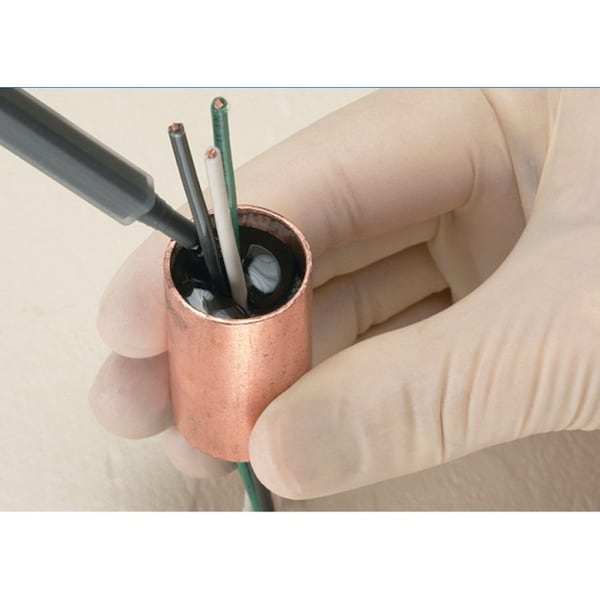

| Application | Potting, Sealing, And Bonding Electronic Components |
| Color | Clear |
| For Use On | And EPX 6mm Mixing Nozzle-2VCY4, EPX 200mL Manual Applicator-2VCY5, EPX 200mL Pneumatic Applicator-2JBK3 |
| Container Size | 0.7 fl oz |
| Container Type | Bottle |
| Functional Cure | 3 hr |
| Full Cure | 48 hr |
| Mixing Ratio | 1:01 |
| Shear Strength | 2,500 psi |
| Temp. Range | -65 to 180 deg F |
| Working Time | 1 hr |
| Series | DP270 |
| Work Life | 1 hr |
| Shear Strength (PSI) | 2,500 |
| For Use With | And EPX 6mm Mixing Nozzle-2VCY4, EPX 200mL Manual Applicator-2VCY5, EPX 200mL Pneumatic Applicator-2JBK3 |
| Epoxy Container | Dual-Cartridge |
| Temp. Range (F) | -65 to 180 |
| Size | 6.76 fl oz |
| Epoxy Max. Temp | 199 Degrees F and Below |
| Epoxy Color | Black |
| Structural Adhesive Type | Epoxy Adhesive |
| Coverage | 320 sq ft/gal |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Application Method | No Special Application |
| Resin Type | Epoxy |
| Water Resistance | Not Water-Resistant |
| Materials Bonded | Ceramic, Composite, Glass, Metal, Plastic |
| Interior/Exterior | Exterior, Interior |
| Total Volume | 200 mL |
| Primary Applications | Potting |
| Maximum Application Temperature | 80 deg F |
| Non-Sagging | No |
| Full Cure Time | 48 hr |
| Minimum Application Temperature | 65 deg F |
| Hardness at Full Cure | 83 Shore D |
| Maximum Viscosity | 16,000 cps |
| Included Components | Hardener, Resin |
| Cure Method | Ambient |
| Minimum Viscosity | 6,000 cps |
| Standards | UL 94 HB |
| VOC Content Weight | Less than 10 g/L |
| Maximum Performance Temperature | 180 deg F |
| Marine Grade | No |
| Tensile Strength | 2,500 psi |
| Low Odor | No |
| Peel Strength | 2 lb/in |
| Compatible Applicator (Grainger Part Number) | 794HJ1 |
| Cured Color | Black |
| Compatible Applicator | 3M EPX |
| Compatible Mixer Tip | 3M EPX |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
