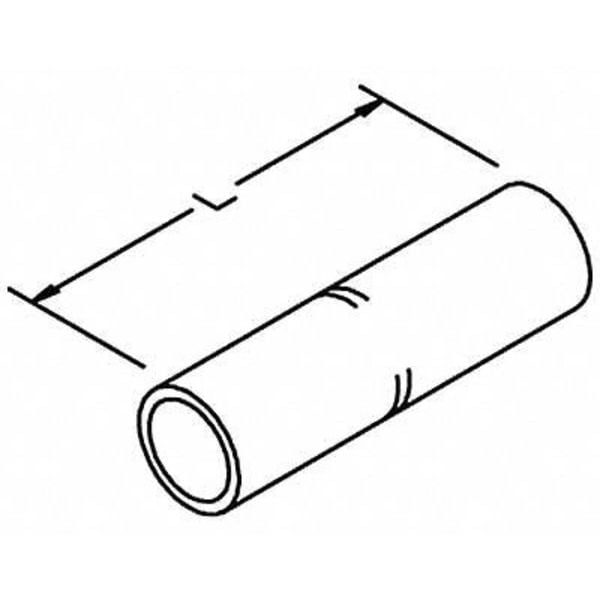

Long-Barrel Splice, 3.38 in. L, Yellow, PK3
| Item | Long-Barrel Splice |
|---|---|
| Material | High Conductivity Copper |
| Die Code | 13,456, Thomas and Betts 13463, U29RT (3) crimps, A29R (3) crimps, Burndy: W166 (4) crimps |
| Length | 3.38 in |
| Outside Dia. | 3/4 in |
| Color Code | Yellow |
| Wire Gauge | 250 kcmil |
| Standards | CSA Certified, UL Listed |
| Connector Type | Compression Connectors |
| Length (Straight Wireway) | 3.38 in |
| Connector Base Metal | Copper |
| Indoor/Outdoor | Both |
| Inside Diameter | 0.6 in |
| Product Series | 11000 |
| Body Material | Copper |
| Electrical Connector Type | Compression Connectors |
| Barrel Style | Long Barrel |
| Maximum Operating Voltage | 35 kV |
| Maximum Conductor Size | 250 kcmil (Stranded) |
| For Use With | Copper Conductor Only |
| Package Quantity | 3 |
