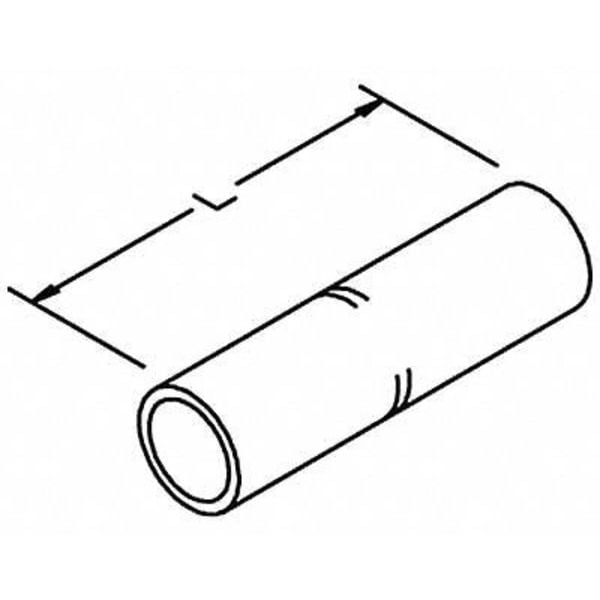

Long-Barrel Splice, 4.63 in. L, Brown, PK3
| Item | Long-Barrel Splice |
|---|---|
| Material | High Conductivity Copper |
| Length | 4.63 in |
| Standards | CSA Certified, UL Listed |
| Color Code | Brown |
| Wire Gauge | 500 kcmil |
| Die Code | Burndy: A34R (4) crimps, Thomas and Betts 13468, U34RT (3) crimps |
| Outside Dia. | 1.06 in |
| Connector Type | Compression Connectors |
| Length (Straight Wireway) | 4.63 in |
| Barrel Style | Long Barrel |
| Product Series | 11000 |
| Connector Base Metal | Copper |
| Maximum Conductor Size | 500 kcmil (Stranded) |
| Indoor/Outdoor | Both |
| Body Material | Copper |
| Electrical Connector Type | Compression Connectors |
| Maximum Operating Voltage | 35 kV |
| For Use With | Copper Conductor Only |
| Inside Diameter | 0.84 in |
| Package Quantity | 3 |
