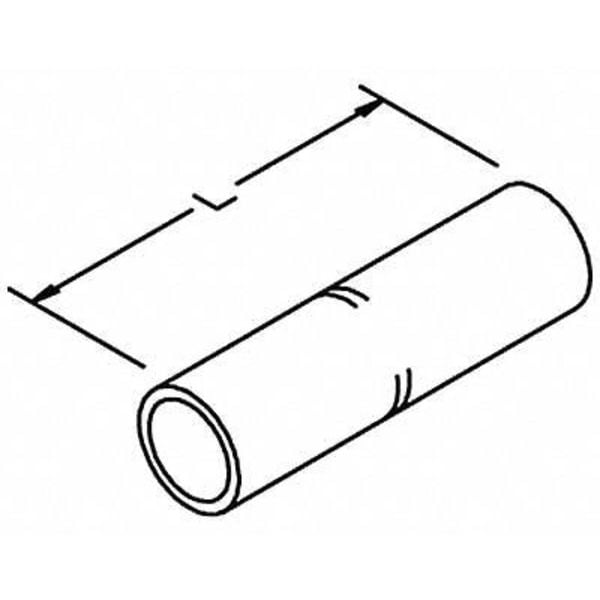

Long-Barrel Splice, 5.88 in. L, Black, PK3
| Item | Long-Barrel Splice |
|---|---|
| Material | Copper |
| Overall Length | 5.88 in |
| Color Code | Black |
| Standards | UL Listed |
| Outside Dia. | 1.3 in |
| Length | 5.88 in |
| Die Code | 106 |
| Wire Gauge | 750 kcmil |
| Connector Type | Compression Connectors |
| Length (Straight Wireway) | 5.88 in |
| RoHS Compliant | Yes |
| For Wire Type | Stranded, Solid |
| Barrel Size | Long |
| Compatible with Series | 5420, 5450, 5461 |
| Contact Material | Copper |
| Minimum Wire Size | 750 kcmil |
| Contact Finish | Tin |
| Barrel Inside Diameter | 1.03 in |
| Seam Style | Seamless |
| Maximum Wire Size | 750 kcmil |
| Compatible with Product Type | Copper Conductor |
| Termination Style | Crimp |
| Minimum Operating Temperature | 73 deg F |
| Maximum Wire Insulation Diameter | 1.3 in |
| Compatible Installation Tool Model Number | 10000-11000 |
| Barrel Finish | Tin Plated |
| Maximum Voltage | 35 kV |
| For Conductor Material | Copper |
| Number of Crimps | 12 |
| Special Features | Built-In Solid Center Oil Stop, Made Of Aluminum For Good Conductivity And Has Corrosion-Resistant Tin Plating, Standard Barrel Ensures Reliable Performance |
| Maximum Operating Temperature | 221 deg F |
| Barrel Outside Diameter | 1.3 in |
| Indoor/Outdoor | Both |
| Maximum Conductor Size | 750 kcmil (Stranded) |
| For Use With | Copper Conductor Only |
| Product Series | 11000 |
| Electrical Connector Type | Compression Connectors |
| Maximum Operating Voltage | 35 kV |
| Barrel Style | Long Barrel |
| Package Quantity | 3 |
