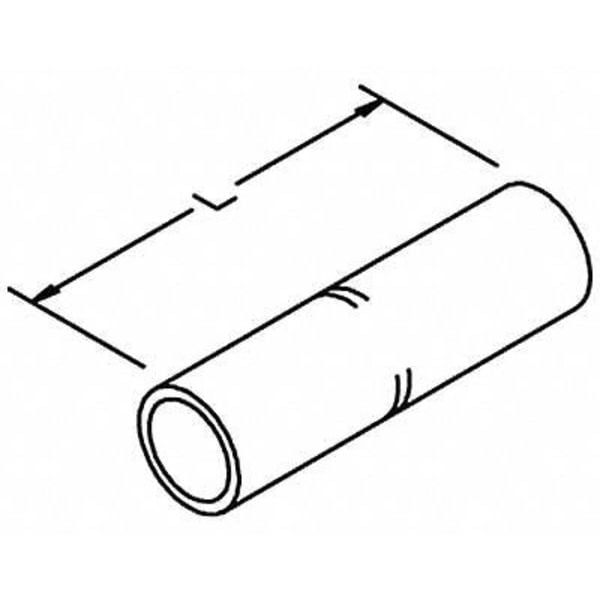

Long-Barrel Splice, 6.13 in. L, Wht, PK3
| Item | Long-Barrel Splice |
|---|---|
| Material | Copper |
| Overall Length | 6.13 in |
| Wire Gauge | 1,000 kcmil |
| Color Code | White |
| Standards | ANSI |
| Length | 6.13 in |
| Outside Dia. | 1-1/2 in |
| Die Code | P44RT (6) crimps, Burndy: S44RT (6) crimps |
| Connector Type | Compression Connectors |
| Length (Straight Wireway) | 6.13 in |
| Barrel Finish | Tin Plated |
| Barrel Inside Diameter | 1.17 in |
| Minimum Wire Size | 1,000 kcmil |
| Contact Material | Copper |
| Seam Style | Seamless |
| Minimum Operating Temperature | 73 deg F |
| Barrel Size | Long |
| RoHS Compliant | Yes |
| Compatible with Series | QS, QS-II, QS-III |
| For Wire Type | Stranded |
| Barrel Outside Diameter | 1-1/2 in |
| Compatible with Product Type | Copper Conductor |
| Maximum Wire Size | 1,000 kcmil |
| Compatible Installation Tool Model Number | 10000-11000 |
| Maximum Voltage | 35 kV |
| Special Features | Built-In Solid Center Oil Stop, Made Of Aluminum For Good Conductivity And Has Corrosion-Resistant Tin Plating, Standard Barrel Ensures Reliable Performance |
| Number of Crimps | 12 |
| Maximum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| Termination Style | Crimp |
| Maximum Wire Insulation Diameter | 1-1/2 in |
| Product Series | 11000 |
| Maximum Operating Voltage | 35 kV |
| Maximum Conductor Size | 1,000 kcmil (Stranded) |
| Indoor/Outdoor | Both |
| Electrical Connector Type | Compression Connectors |
| Barrel Style | Long Barrel |
| For Use With | Copper Conductor Only |
| Package Quantity | 3 |
