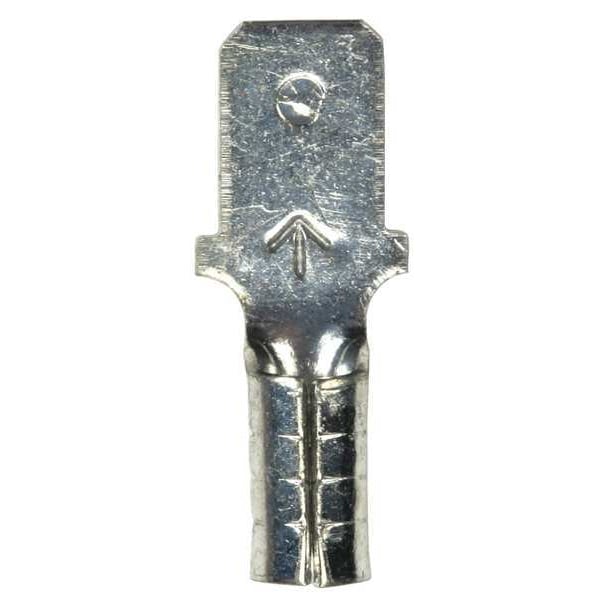

Desconexión macho, desnuda, calibre 16-14AWG, paquete con 100 unidades.
| Item | Male Disconnect |
|---|---|
| Insulation | None |
| Insulation Color | Bare |
| Insulation Type | Bare |
| Connection Type | Crimp |
| Wire Range | 16 to 14 AWG |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.73 in |
| Seam | Butted |
| Max. Voltage | 1,000 V |
| Max. Temp. | 900 deg F |
| Barrel Inside Dia. | 0.09 in |
| Connection Material | Nickel-Plated Steel |
| Standards | RoHS Compliant |
| Terminal Type | Disconnect |
| Barrel Inside Diameter | 0.09 in |
| Maximum Conductor Size | 14 AWG |
| Barrel Length | 1/4 in |
| Minimum Conductor Size | 16 AWG |
| Fastener Orientation | Male |
| Male Tab Width (W') | 1/4 in |
| Connection Width | 1/4 in |
| Terminal Style | High Temp |
| Solution for | Wireless Network Infrastructure Accessories |
| Pad Width | 1/4 in |
| Insulation Material | Non-insulated |
| Disconnect Type | Male |
| Package Quantity | 100 |
