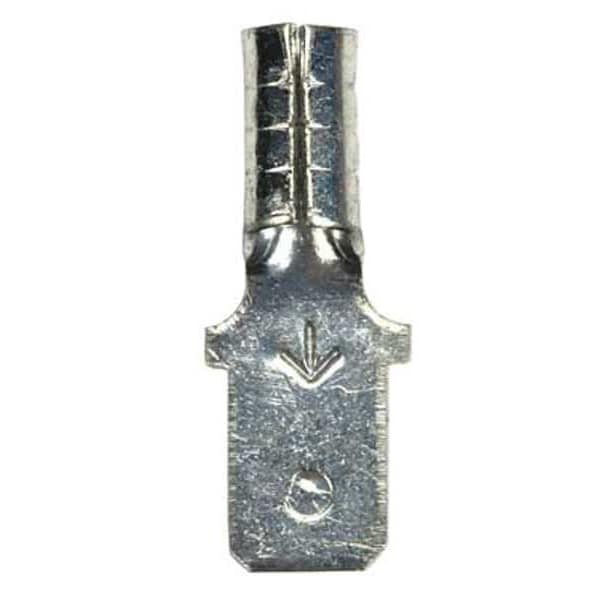

Male Disconnect, Bare, 16-14AWG, PK1000
| Item | Male Disconnect |
|---|---|
| Insulation | None |
| Insulation Color | Bare |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Bare |
| Tab Size | 0.020 in x 0.187 in |
| Overall Length | 0.64 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 347 deg F |
| Barrel Inside Dia. | 0.08 in |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Connection Material | Copper |
| Terminal Type | Disconnect |
| Bullet Diameter | 0.18 in |
| Disconnect Type | Male |
| Solution for | Wireless Network Infrastructure Accessories |
| Barrel Inside Diameter | 0.08 in |
| Barrel Length | 0.24 in |
| Male Tab Width (W') | 0.187 in |
| Minimum Conductor Size | 16 AWG |
| Maximum Conductor Size | 14 AWG |
| Connection Width | 0.187 in |
| Pad Width | 0.187 in |
| Terminal Style | Standard |
| Fastener Orientation | Male |
| Insulation Material | Non-insulated |
| Package Quantity | 1000 |
