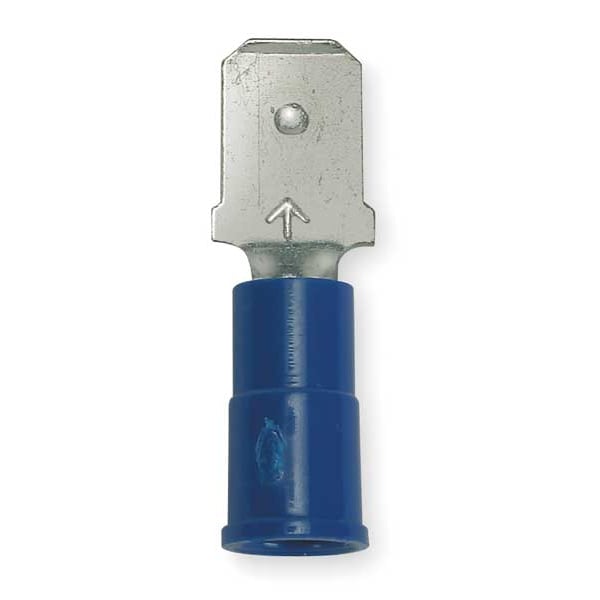

Male Disconnect, Blue, 16-14AWG, PK100
| Item | Male Disconnect |
|---|---|
| Insulation | Full |
| Material | Plastic |
| Insulation Color | Blue |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Tab Size | 0.020 in x 0.187 in |
| Overall Length | 0.87 in |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Copper |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Barrel Inside Dia. | 0.08 in |
| Terminal Type | Male Disconnect |
| Minimum Conductor Size | 16 AWG |
| Fastener Orientation | Male |
| Maximum Conductor Size | 14 AWG |
| Diameter (D) | 0.3 in |
| Barrel Inside Diameter | 0.08 in |
| Maximum Insulation Outer Diameter | 0.145 in |
| Overall Diameter | 0.3 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Connection Width | 0.187 in |
| Overall Width | 0.37 in |
| Tab Width | 1/4 in |
| Pad Width | 0.187 in |
| Male Tab Width (W') | 0.187 in |
| Disconnect Type | Male |
| Voltage Application | Low Voltage |
| Terminal Style | Fully Insulated |
| Package Quantity | 100 |
