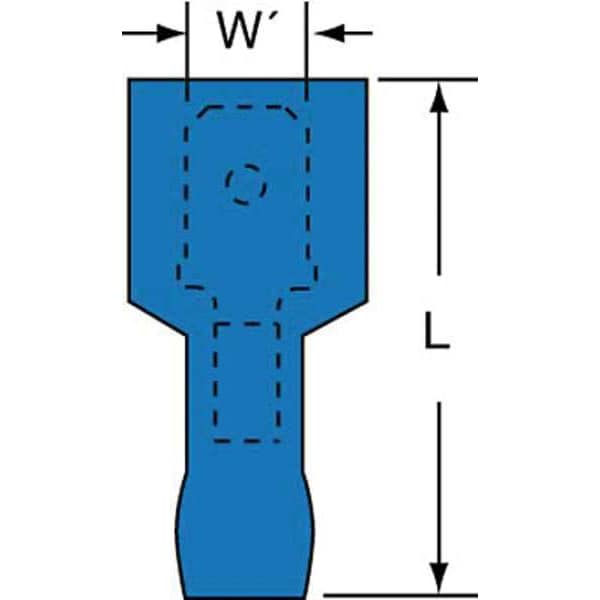

Desconexión macho, azul, 16-14AWG, paquete de 1000
| Item | Male Disconnect |
|---|---|
| Insulation | Full |
| Material | Plastic |
| Insulation Color | Blue |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.95 in |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Connection Material | Tin-Plated Copper |
| Barrel Inside Dia. | 0.085 in |
| Terminal Type | Disconnect |
| Barrel Length | 1/4 in |
| Male Tab Width (W') | 1/4 in |
| Barrel Inside Diameter | 0.17 in |
| Maximum Conductor Size | 14 AWG |
| Tab Width | 1/4 in |
| Terminal Style | Fully Insulated |
| Diameter (D) | 0.3 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Minimum Conductor Size | 16 AWG |
| Overall Diameter | 0.3 in |
| Fastener Orientation | Male |
| Pad Width | 1/4 in |
| Insulation Material | Nylon |
| Disconnect Type | Male |
| Voltage Application | Low Voltage |
| Overall Width | 0.44 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Connection Width | 1/4 in |
| Package Quantity | 1000 |
