Male Disconnect, Red, 22-18AWG, PK250
| Item | Male Disconnect |
|---|---|
| Insulation | Full |
| Insulation Color | Red |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Wire Range | 22 to 18 AWG |
| Overall Length | 1.2 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Copper |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Barrel Inside Dia. | 0.065 in |
| Terminal Type | Disconnect |

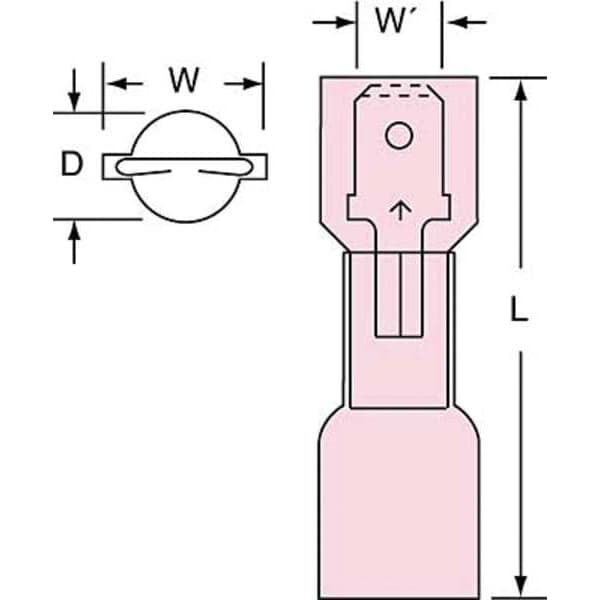

| Male Tab Width (W') | 1/4 in |
| Terminal Style | Fully Insulated |
| Maximum Conductor Size | 18 AWG |
| Insulation Material | Heat Shrink |
| Pad Width | 1/4 in |
| Barrel Length | 1/4 in |
| Disconnect Type | Male |
| Barrel Inside Diameter | 0.065 in |
| Overall Width | 0.44 in |
| Overall Diameter | 0.3 in |
| Connection Width | 1/4 in |
| Fastener Orientation | Male |
| Diameter (D) | 0.3 in |
| Minimum Conductor Size | 22 AWG |
| Bullet Diameter | 0.156 in |
| Package Quantity | 250 |
