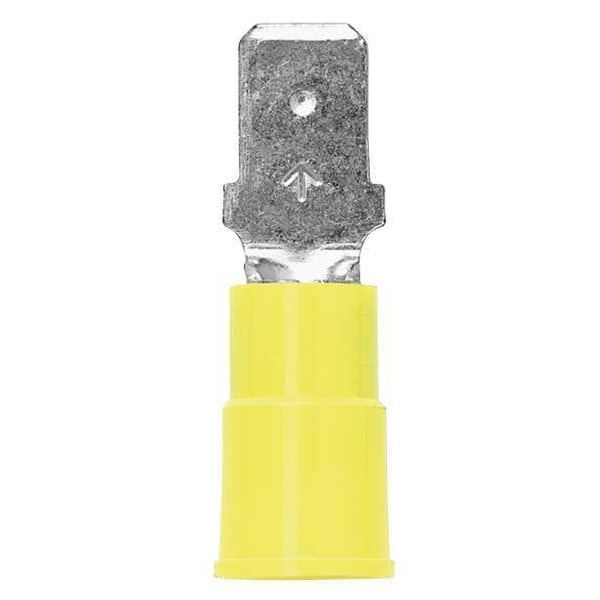

Desconexión macho, amarillo, 12-10AWG, paquete de 25.
| Item | Male Disconnect |
|---|---|
| Insulation | Partial |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Wire Range | 12 to 10 AWG |
| Insulation Type | Vinyl |
| Overall Length | 1.05 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Max. Voltage | 1,000 V |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Barrel Inside Dia. | 0.15 in |
| Connection Material | Electro-Tin-Plated Copper |
| Terminal Type | Disconnect |
| Maximum Insulation Outer Diameter | 1/4 in |
| Barrel Inside Diameter | 0.15 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Minimum Conductor Size | 12 AWG |
| Tab Width | 0.11 in |
| Barrel Length | 1/4 in |
| Maximum Conductor Size | 10 AWG |
| Pad Width | 1/4 in |
| Disconnect Type | Male |
| Mates with Female Width | 1/4 in |
| Connection Width | 1/4 in |
| Mates with Male Tab Width (W') | 1/4 in |
| Terminal Style | Standard |
| Fastener Orientation | Male |
| Package Quantity | 25 |
