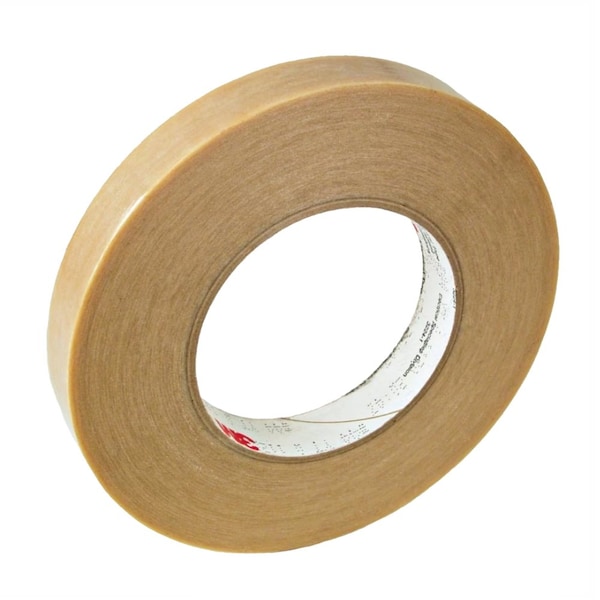

No. 44 Composite Film Electrical Tape, 1/2in. Wide, Thermosetting Rubber Adhesive, 90 Yard Roll
| Series | 44 |
|---|---|
| Tape Thickness | 5.25 mil |
| Color | Tan |
| Width | 1/2 in |
| Length | 90 yd |
| Tape Backing Material | Polyester Film/Nonwoven Composite |
| Adhesion Strength | 25 lb/in |
| Shape | Continuous Roll |
| Standards | UL Component Recognized: UL510A Standard, Category OANZ2, File No. E17385; and CSA Certified: Standard C22.2 No. 66, File No. 093411, Class 9052-30 |
| Application | Commonly used in applications such as stick-wound coils/transformers and in bobbin-wound coils for banding, anchoring, and insulating. |
| Material | Thermosetting Rubber (Adhesive), Composite Film (Backing) |
| Tape Adhesive Material | Rubber |
| Maximum Tape Performance Temperature | 130 C |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
