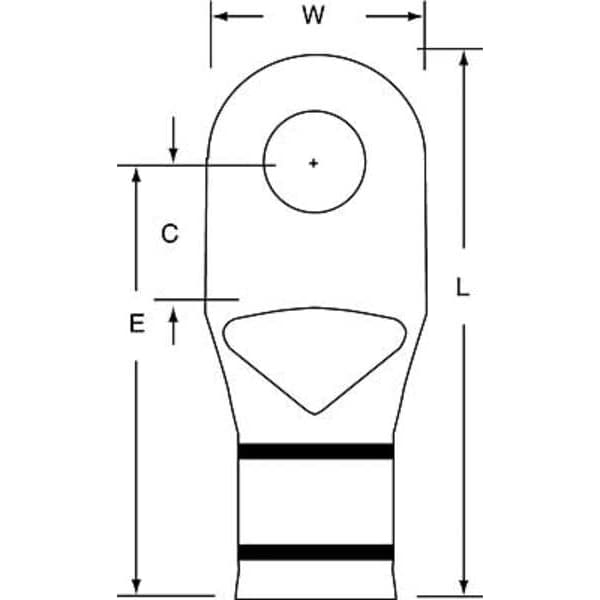

Una terminal de compresión de un agujero para cable de calibre 2/0 AWG, paquete de 100 unidades.
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Seamless Barrel |
| Width | 0.83 in |
| Material | Copper |
| Length | 2.05 in |
| Color Code | Black |
| Plate Material | Tin |
| Peep Hole | No |
| Tongue Style | Ring |
| Die Code | 100, 13 |
| Item | Compression Lug Ring Tongue |
| Standards | CSA Certified, UL Listed |
| Stud Size | 3/8 in |
| Barrel Length | Short |
| Hole Center to Center | Not Applicable |
| Hole Center to End | 0.46 in |
| Length (Straight Wireway) | 2.09 in |
| Barrel Inside Diameter | 0.46 in |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Tongue Angle | Straight |
| Tongue Length | 1.41 in |
| Strip Length | 11/16 in |
| Contact Finish | Tin |
| For Wire Type | Stranded |
| For Stud Size | 3/8 in |
| Barrel Size | Short |
| Seam Style | Seamless |
| Tongue Thickness | 0.1 in |
| Overall Length | 2.05 in |
| RoHS Compliant | Yes |
| For Wire Size | 2/0 AWG |
| Inspection Hole | No |
| Special Features | Non-Insulated Construction |
| Overall Width | 0.83 in |
| Barrel Style | Seamless |
| Tongue Width | 0.83 in |
| Termination Style | Crimp |
| For Conductor Material | Copper |
| Package Quantity | 100 |
