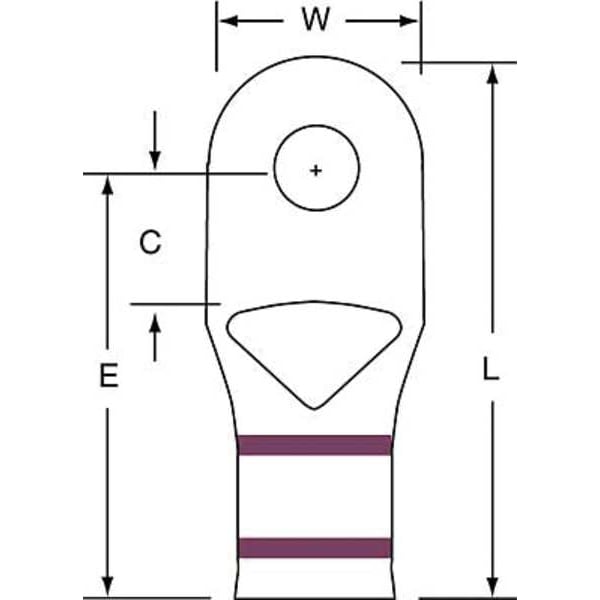

Conector de compresión de una sola perforación, calibre 2 AWG, paquete con 100 piezas.
| Cable Size | 2 AWG |
|---|---|
| Connector Type | Seamless Barrel |
| Width | 0.65 in |
| Material | Copper |
| Length | 1.69 in |
| Color Code | Brown |
| Plate Material | Tin |
| Die Code | 10 |
| Stud Size | 1/4 in |
| Item | Compression Lug Ring Tongue |
| Peep Hole | No |
| Tongue Style | Ring |
| Standards | UL Listed |
| Barrel Length | Short |
| Hole Center to Center | Not Applicable |
| Length (Straight Wireway) | 1.6 in |
| For Stranded Copper Wire Size - Maximum | 2 AWG |
| Special Features | Non-Insulated Construction |
| Termination Style | Crimp |
| Contact Finish | Tin |
| For Wire Type | Stranded |
| For Stud Size | 1/4 in |
| Strip Length | 1/2 in |
| Barrel Style | Seamless |
| Inspection Hole | No |
| For Conductor Material | Copper |
| Barrel Inside Diameter | 0.34 in |
| Tongue Width | 0.65 in |
| Seam Style | Seamless |
| Tongue Angle | Straight |
| Tongue Thickness | 0.1 in |
| Barrel Size | Short |
| RoHS Compliant | Yes |
| For Wire Size | 2 AWG |
| Overall Width | 0.65 in |
| Overall Length | 1.69 in |
| Package Quantity | 100 |
