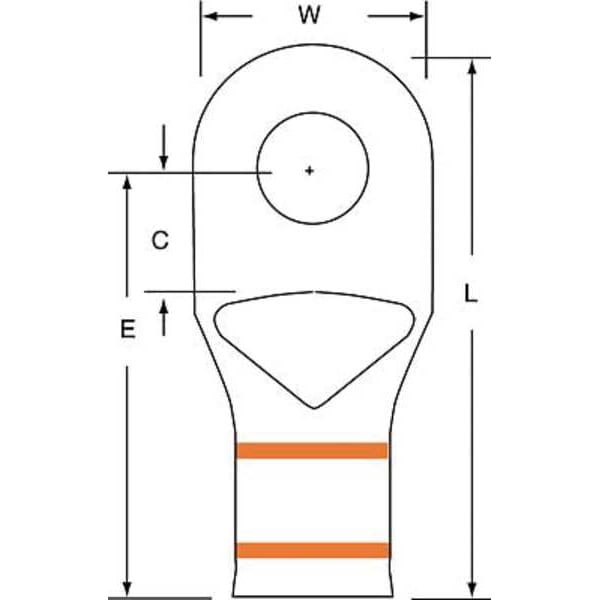

Conector compresor de un agujero para terminal en frío, calibre 3/0 AWG, paquete con 60 piezas.
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Seamless Barrel |
| Width | 0.91 in |
| Material | Copper |
| Length | 2.24 in |
| Color Code | Orange |
| Barrel Length | Short |
| Die Code | 101, 14 |
| Standards | CSA Certified, UL Listed |
| Item | Compression Lug Ring Tongue |
| Peep Hole | No |
| Stud Size | 3/8 in |
| Plate Material | Tin |
| Tongue Style | Ring |
| Hole Center to End | 0.47 in |
| Hole Center to Center | Not Applicable |
| Length (Straight Wireway) | 2.16 in |
| Tongue Length | 0.7 in |
| Barrel Style | Seamless |
| For Wire Size | 3/0 AWG |
| Inspection Hole | No |
| For Conductor Material | Copper |
| Contact Finish | Tin |
| Tongue Angle | Straight |
| Tongue Width | 0.91 in |
| For Wire Type | Stranded |
| For Stranded Copper Wire Size - Maximum | 3/0 AWG |
| Overall Length | 2.24 in |
| RoHS Compliant | Yes |
| Overall Width | 0.91 in |
| Strip Length | 3/4 in |
| Tongue Thickness | 0.12 in |
| For Stud Size | 3/8 in |
| Special Features | Non-Insulated Construction |
| Barrel Size | Short |
| Termination Style | Crimp |
| Barrel Inside Diameter | 0.51 in |
| Seam Style | Seamless |
| Package Quantity | 60 |
