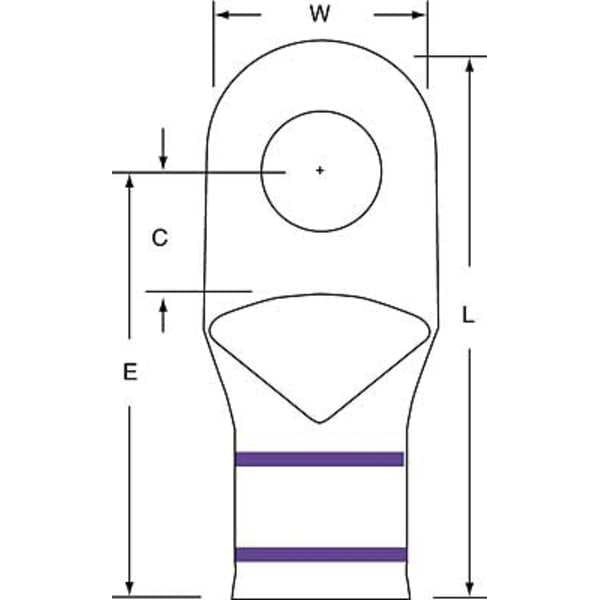

Terminal de compresión de una sola abertura, calibre 4/0 AWG, paquete con 60 unidades.
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Seamless Barrel |
| Width | 1 in |
| Material | Copper |
| Length | 2.29 in |
| Color Code | Purple |
| Item | Compression Lug Ring Tongue |
| Peep Hole | No |
| Stud Size | 1/2 in |
| Plate Material | Tin |
| Die Code | 15 |
| Tongue Style | Ring |
| Standards | UL Listed |
| Barrel Length | Short |
| Hole Center to Center | Not Applicable |
| Length (Straight Wireway) | 2.35 in |
| Inspection Hole | No |
| Tongue Width | 1 in |
| For Wire Size | 4/0 AWG |
| For Stud Size | 1/2 in |
| Tongue Thickness | 0.13 in |
| For Conductor Material | Copper |
| Barrel Size | Short |
| For Wire Type | Stranded |
| Overall Length | 2.29 in |
| RoHS Compliant | Yes |
| Seam Style | Seamless |
| Strip Length | 13/16 in |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Overall Width | 1 in |
| Tongue Angle | Straight |
| Termination Style | Crimp |
| Special Features | Non-Insulated Construction |
| Barrel Inside Diameter | 0.56 in |
| Barrel Style | Seamless |
| Contact Finish | Tin |
| Package Quantity | 60 |
